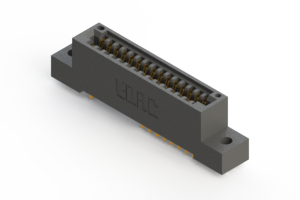

EDAC 395030520202 Card Edge Connector
This high-quality card edge connector features a 0.100-inch (2.54 mm) contact spacing and 30 contacts for reliable connections. It supports various mounting options, including through holes with a 0.128-inch (3.25 mm) diameter. The connector has a durable UL94V-0 thermoplastic polyester insulator, gold-plated contacts on mating areas, and tin-plated tails with nickel underplating. It is suitable for PCB thickness up to 0.062 inches (1.57 mm), with a maximum contact resistance of 10 milliohms and dielectric withstand voltage of 1200 V AC rms.
EDAC 395030520202 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54 mm)
- Total contacts: 30
- Tail size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail length: 0.175 inches (4.45 mm)
- Mounting holes diameter: 0.128 inches (3.25 mm)
- Insulator material: UL94V-0 thermoplastic polyester
- Contact material: Copper alloy
- Contact plating: Gold on mating area, tin on tails with nickel underplating
- Maximum contact resistance: 10 milliohms
- Dielectric withstand voltage: 1200 V AC rms
- Insulation resistance: 5000 megaohms minimum
- Operating temperature: -40°C to +105°C
- Current rating: appropriate for typical application
Buy the Edac Series 345 Card Edge Connector: 395030520202
Discover the Edac Series 345 card edge connector, designed for robust electronic applications. Featuring 0.100-inch contact spacing, 30 contacts, and versatile mounting options, it ensures dependable connections. Crafted from UL94V-0 thermoplastic polyester, with gold-plated contacts and tin-plated tails, it provides excellent electrical characteristics. Suitable for PCB thicknesses up to 0.062 inches, with a dielectric withstand voltage of 1200 V, it's ideal for reliable electronic assembly. Order online now for quick delivery and superior performance.
Buy Edac 395030520202 now and experience unmatched reliability and performance with high-quality connection features.
Frequently Asked Questions
Where can I buy EDAC 395030520202?
You can click on the BUY or RFQ button to purchase 395030520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 395030520202?
You can download the 395030520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 395030520202?
EDAC
