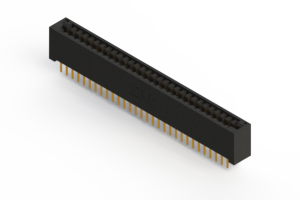

EDAC 396060520201 Card Edge Connector
This high-quality card edge connector features a 0.125-inch contact pitch (3.18mm) and accommodates up to 60 contacts. It offers robust terminal options including PC tail, wire wrap, and extender board bends, with various mounting arrangements like flush or offset lugs. Made with UL 94V-0 thermoplastic polyester insulator and gold-plated copper alloy contacts, it ensures reliable electrical performance with a maximum contact resistance of 10 milliohms. Suitable for PCB assembly, it supports operating temperatures from -40°C to +105°C and dielectric withstand voltage up to 1500 V AC rms, compliant with RoHS standards.
EDAC 396060520201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1500 V AC rms between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Tail Size: 0.025 inches (0.64mm) square
- Tail Length: 0.175 inches (4.45mm)
- Contact Capacity: Up to 60 contacts
- Mounting Option: Part number 520-201 specifies mounting type
- RoHS Compliant & UL Certified
Buy the Buy Edac Card Edge Connector Part Number 396060520201 Online
Purchase the Edac Card Edge Connector part number 396060520201 online today. Designed for high reliability with a contact pitch of 0.125 inches and 60 contacts, this connector ensures excellent electrical performance in PCB applications. Features include gold-plated copper alloy contacts, UL 94V-0 thermoplastic insulator, and various mounting options for versatile installation. Suitable for operating temperatures from -40°C to +105°C, with dielectric withstand voltage of 1500V AC rms, meeting RoHS standards for safety and environmental compliance. Perfect for reliable, long-lasting electronic connections.
Get Edac 396060520201 today—built for precision and long-lasting durability with reliable PCB connections and versatile mounting options.
Frequently Asked Questions
Where can I buy EDAC 396060520201?
You can click on the BUY or RFQ button to purchase 396060520201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 396060520201?
You can download the 396060520201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 396060520201?
EDAC
