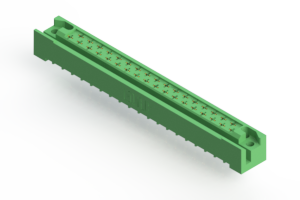

EDAC 424035522122 Card Edge Connector
This metal-to-metal card edge connector offers a contact spacing of 0.200 inches (5.08 mm) and includes 35 contacts. It accepts PCB thicknesses of 0.062 inches (1.57 mm) or 0.093 inches (2.36 mm) and features a gold plating over nickel for reliable conductivity. The connector supports a current of 10 amps, with a dielectric withstand voltage of 2000 V AC rms at sea level. Operating temperature ranges from -65°C to +125°C, making it suitable for demanding electronic applications involving rugged environments and high-performance circuit connections.
EDAC 424035522122 Card Edge Connector Specifications:
- Contact spacing: 0.200 inches (5.08 mm)
- Number of contacts: 35
- Contact material: Copper alloy
- Contact plating: Gold over Nickel
- Current rating: 10 amps
- Dielectric withstanding voltage: 2000 V AC rms at sea level
- Insulation resistance: 5000 megaohms minimum
- Operating temperature: -65°C to +125°C
- Insertion force: 2 to 16 oz (0.56 to 4.45 N) per contact
- Withdrawal force: 2 to 16 oz (0.56 to 4.45 N) per contact
- Insulator material: UL 94V-0 Diallyl Phthalate, Green color
- Mounting holes: 0.128 inches (3.25 mm) diameter
- Tail size: 0.044 x 0.025 inches (1.12 x 0.64 mm)
- Tail length: 0.186 inches (4.72 mm)
Buy the Edac Series 408 Card Edge Connector: 424035522122
Discover the high-quality Edac Series 408 Card Edge Connector, featuring 35 contacts, 0.200-inch spacing, and a robust design suitable for demanding electronic applications. Designed with a gold-plated contact over nickel and a durable insulator, this connector ensures excellent conductivity and long-lasting performance. It supports PCB thicknesses of 0.062 inches or 0.093 inches and is mounted using 0.128-inch diameter holes. Perfect for rugged environments, it offers reliable electrical connections, easy installation, and compliance with RoHS standards. Buy online today to enhance your electronic assembly with confidence.
Order your Edac Series 408 Card Edge Connector with 35 contacts today and ensure reliable, high-performance connections for your electronic projects.
