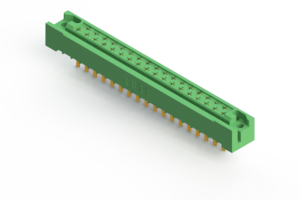

EDAC 424035541112 Edge Connector
This metal-to-metal connector offers reliable contact performance with a contact spacing of 0.200 inches and a total of 35 contacts. It features a wire wrap tail size of 0.060 x 0.025 inches with a length of 0.744 inches, suitable for flexible and secure connections. The connector is designed with durable copper alloy contacts and gold plating over nickel, ensuring excellent conductivity and corrosion resistance. It supports various mounting options with 0.128-inch diameter mounting holes and is RoHS compliant, making it ideal for industrial, electronic, and manufacturing applications requiring robust PCB edge connections.
EDAC 424035541112 Edge Connector Specifications:
- Contact Spacing: 0.200 inches (5.08 mm)
- Number of Contacts: 35
- Wire Wrap Tail Size: 0.060 x 0.025 inches (1.52 x 0.64 mm)
- Tail Length: 0.744 inches (18.90 mm)
- Mounting Holes: 0.128 inches (3.25 mm) diameter
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel
- Current Rating: 10 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -65°C to +125°C
- Insulator Material: UL 94V-0 Diallyl Phthalate, Green
- RoHS Compliant
Buy the Edac 424035541112 – Reliable PCB Edge Connectors for Industrial Applications
Order the Edac edge connector today for secure, high-quality PCB connections suitable for industrial electronics and manufacturing. With robust copper alloy contacts, gold plating, and a durable design, this connector ensures reliable performance across a wide temperature range from -65°C to +125°C. Its 0.200-inch contact spacing, 35 contacts, and mounting options with 0.128-inch holes make it versatile for various PCB designs. Perfect for applications demanding durable electrical connections, this connector provides ease of installation and excellent conductivity. Purchase now to enhance your electronic assembly's reliability and performance.
Get Edac 424035541112 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy EDAC 424035541112?
You can click on the BUY or RFQ button to purchase 424035541112 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 424035541112?
You can download the 424035541112 datasheet or visit the EDAC website for support.
Who is the manufacturer of 424035541112?
EDAC
