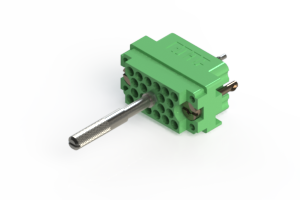

EDAC 516020000101 Rack and Panel Connector
This rugged rack and panel connector ensures secure, reliable connections for electronic enclosures across industrial and commercial applications. Featuring contact spacings of 0.150 inches and a staggered grid design, it supports contact sizes from 20 to 120 with options for crimp, P.C. tail, wire hole, or wire wrap terminations. The connector accommodates various insulator materials like Diallyl Phthalate, Polycarbonate, or Polyester, all UL rated and RoHS compliant. The device includes optional covers, polarizing hardware for up to 288 mating configurations, and tools for installation and changeovers. Designed for durability, it withstands temperatures of -40°C to +125°C and has a dielectric withstand voltage of 2000 V AC rms.
EDAC 516020000101 Rack and Panel Connector Specifications:
- Contact spacing: 0.150 inch (3.81 mm)
- Row spacing options: 0.130 inch (3.30 mm) or 0.150 inch (3.81 mm)
- Contact sizes supported: 20, 38, 56, 90, 120
- Insulator materials: Diallyl Phthalate, Polycarbonate, Polyester
- UL 94V-0 rated insulators
- Contact material: Copper alloy with gold plating over nickel
- Contact resistance: 10 milliohms maximum
- Dielectric withstand voltage: 2000 V AC rms
- Insulation resistance: Minimum 5000 megaohms
- Operating temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate and Polyester)
- Insertion & withdrawal force: 2 to 16 oz (0.56 to 4.45 N)
- Current rating varies per contact size, up to sufficient for industrial power and signal connections
- Physical dimensions: 130 mm to 182 mm depending on contact count, with compatible plug and receptacle configurations
- Includes optional covers, locknuts, polarizing hardware, and tools for assembly or disassembly
Buy the Edac 516020000101 – Reliable Rack and Panel Connectors for Industrial Applications
Order the Edac 516020000101 rack and panel connector online today to ensure your electronic systems have durable, high-quality, and versatile connectivity. With support for multiple contact sizes, optional covers, polarizing hardware, and extensive termination options, this connector guarantees reliable performance in demanding industrial environments. Designed with UL certification and RoHS compliance, it withstands extreme temperatures and offers easy assembly with tools included. Enhance your equipment's durability and connection security by purchasing this essential industrial connector now, ensuring seamless integration and long-lasting operation.
Buy Edac 516020000101 now and experience unmatched reliability and performance in your industrial electronic enclosures.
Frequently Asked Questions
Where can I buy EDAC 516020000101?
You can click on the BUY or RFQ button to purchase 516020000101 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516020000101?
You can download the 516020000101 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516020000101?
EDAC
