EDAC 516038000421 Rack and Panel Connector
This rack and panel connector offers a reliable solution for secure electrical connections in electronic systems. With customizable contact configurations, plating options, and hardware accessories, it simplifies mating and disconnection processes. Made from high-quality materials such as thermoplastic polycarbonate or polyester, it withstands temperatures from -40°C to +125°C and provides up to 2000 V dielectric withstand voltage. Suitable for various applications, it includes optional covers, polarizing hardware, and tools for easy installation, ensuring safety, durability, and versatility in demanding environments.
EDAC 516038000421 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate and Polyester)
- Insertion & Withdrawal Force: 2 to 16 oz per contact
- Contact Sizes: from 28 AWG to 1 AWG, solid or stranded conductors
- Crimp Resistance: 0.5 to 1.5 milliohms depending on wire size
- Physical Dimensions: Vary per size, Pin spacing from 130mm to 180mm, typical insulator length approx. 0.87 to 1.88 inches

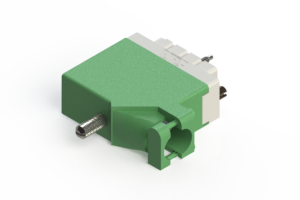

Buy the Buy Edac 516 Series Rack and Panel Connector Part Number 516038000421 Online
Secure your electronic system's connections with the Edac 516 Series Rack and Panel Connector. Featuring high-quality materials, customizable contact configurations, and optional covers, it guarantees durability and safety. Easy to install with tools available for contact and polarizing hardware, this connector supports voltages up to 2000 V and operates from -40°C to +125°C. Ideal for panel mounting in various environments, it ensures reliable signal and power transfer, making your projects more efficient and dependable. Purchase online today for fast delivery and trusted performance.
Order your Edac 516 Series 516038000421 connector today and ensure reliable, customizable electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy EDAC 516038000421?
You can click on the BUY or RFQ button to purchase 516038000421 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516038000421?
You can download the 516038000421 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516038000421?
EDAC
