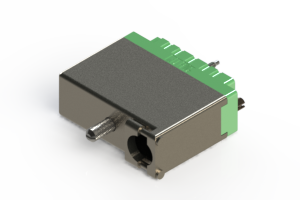

EDAC 516056000261 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and versatile applications. These connectors offer 0.150" contact spacing with staggered grid row spacing, providing efficient space utilization. They feature an Edacon hermaphroditic contact mating design, simplifying mating and unmating with actuating screws. Termination options include crimp, P.C. tail, wire hole, and wire wrap. Optional covers with side or top entry cable clamps are available in plastic or metal. The connectors are RoHS compliant and UL certified, ensuring environmental responsibility and safety. They are suitable for a wide range of industrial applications requiring reliable connectivity.
EDAC 516056000261 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: Crimp, P.C. tail, wire hole, wire wrap
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate Only)
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
Buy the 516-056-000-261 EDAC Rack and Panel Connector | myMectronic
Purchase the EDAC 516-056-000-261 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 516056000261?
You can click on the BUY or RFQ button to purchase 516056000261 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516056000261?
You can download the 516056000261 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516056000261?
EDAC
