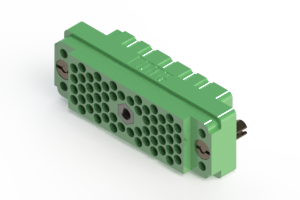

EDAC 516056000602 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and versatile applications. Featuring 0.150" contact spacing and a staggered grid, these connectors offer a hermaphroditic mating design for simplified assembly. Termination options include crimp, P.C. tail, wire hole, and wire wrap, providing flexibility for various wiring needs. Optional covers with side or top entry cable clamps are available in plastic or metal. The connector's design allows for assembly or disassembly after cabling, and polarizing hardware enables numerous mating combinations. Suitable for a wide range of industrial and commercial applications, the 516 series is RoHS compliant and UL certified.
EDAC 516056000602 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: Crimp, P.C. tail, wire hole, wire wrap
- Mating and Unmating: Simplified with actuating screws
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature (Diallyl Phthalate): -40°C to +125°C
- Operating Temperature (Polyester): -40°C to +105°C
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
Buy the 516-056-000-602 EDAC Rack and Panel Connector | myMectronic
Purchase the EDAC 516-056-000-602 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 516056000602?
You can click on the BUY or RFQ button to purchase 516056000602 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516056000602?
You can download the 516056000602 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516056000602?
EDAC
