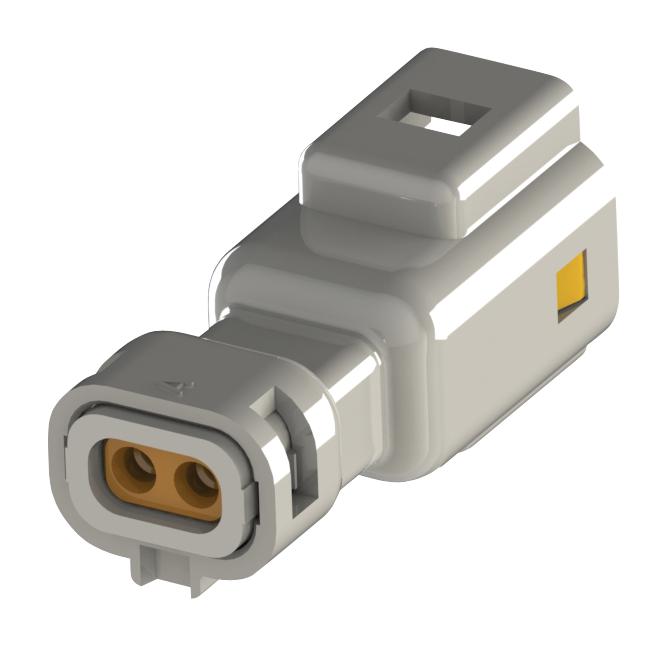

EDAC 560002000111 Waterproof Connector
The waterproof series 560 wire-to-wire and wire-to-board connectors feature a 2.5mm pitch, rated for 3A current, and are IP67 certified for waterproofing. These connectors have a fully sealed design with preassembled seals, internal polarization to prevent mismating, and are available in 2, 3, or 5 positions. Made with high-quality materials like PBT housing with UL 94V-0 rating, phosphor bronze contacts plated with tin, and silicone rubber wire seals, they ensure reliable and durable electrical connections suitable for harsh environments, with rated voltage of 250V and withstand voltage of 2000V AC.
EDAC 560002000111 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Withstanding Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: 1000 MΩ min at DC 500V
- Temperature Range: -40°C to +105°C
- Materials: Housing made of PBT with UL 94V-0 rating, contacts of phosphor bronze, tin-plated
- Wire Seals: Silicone Rubber
- Waterproof Grade: IP67
- Number of Positions: 2, 3, 5
- Compatible Wire Gauge: 20-28 AWG
- Seals: Preassembled into housing, no external sealing required
- Housing colors: White, Blue, Orange
- Compatible with wire insulation diameters from 1.00 to 1.70 mm
- Waterproofing cap available to cover unused positions
- Assembly: Crimp and poke solutions, true crimp design
Buy the Buy Edac Series560 Waterproof Connector Part Number 560002000111 Online
Enhance your electrical systems with the durable and waterproof connector designed for harsh environments. The Series560 connectors feature a 2.5mm pitch, rated at 3A, with IP67 certification. They include preassembled seals, internal polarization, and are available in multiple configurations with various number of positions. Made from high-quality materials such as UL 94V-0 PBT housings and tin-plated phosphor bronze contacts, these connectors ensure reliable performance for longevity. Easy to assemble with crimp or poke-in solutions, perfect for demanding industrial applications.
Order your Edac Series560 waterproof connector 560002000111 today and secure reliable, waterproof electrical connections for your critical projects.
