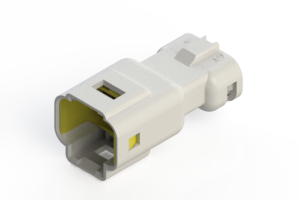

EDAC 560003000110 Waterproof Wire Connector
The EDAC 560 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch and IP67 certification, ensures protection against moisture and dust. Available in wire-to-wire and wire-to-board configurations, with options for pre-assembled wire and various housing colors, this connector provides flexibility for diverse applications. The crimp and poke design simplifies assembly, while the internal polarization prevents mismating. Ideal for automotive, industrial, and outdoor applications requiring a secure and waterproof connection.
EDAC 560003000110 Waterproof Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Contact Material: Phosphor Bronze
- Housing Material: PBT, UL 94V-0
- Wire Insulation Diameter: Ø1.00 to Ø1.70
- Contact Plating: Tin Plating
Buy the 560-003-000-110 EDAC Waterproof Wire Connector | myMectronic
Purchase the EDAC 560-003-000-110 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 560003000110?
You can click on the BUY or RFQ button to purchase 560003000110 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560003000110?
You can download the 560003000110 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560003000110?
EDAC
