EDAC 565290721P60 Waterproof Connector
The Series 560 waterproof connectors offer reliable wire-to-wire and wire-to-board connectivity with a 2.5mm pitch, rated for 3A current and 250V voltage. Fully sealed with preassembled housings and optional waterproof caps, they are IP67 certified, suitable for demanding environments. Designed with internal polarization, optional wire seals, and various housing colors, these connectors ensure secure, resistant connections for industrial, automation, and electronic applications, featuring crimp and poke solutions, multiple configurations, and easy installation for safe and durable electrical connections.
EDAC 565290721P60 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Withstanding Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: 1000 MΩ min.
- Temperature Range: -40°C to +105°C
- Materials: PBT housing UL 94V-0, phosphor bronze contacts, tin plating
- Sealing: IP67 waterproof
- Housing Colors: White, Blue, Orange
- Wire Insulation Range: 1.00 to 1.70 mm
- No. of Positions: 2, 3, 5
- Housing Types: Male, Female, PCB Header
- Contact Configuration: Crimp, poke-in, and preassembled options
- Certifications: IP67, UL
- Connector Options: Wire-to-wire, wire-to-board
- Assembly: Preassembled housings and wire seals included

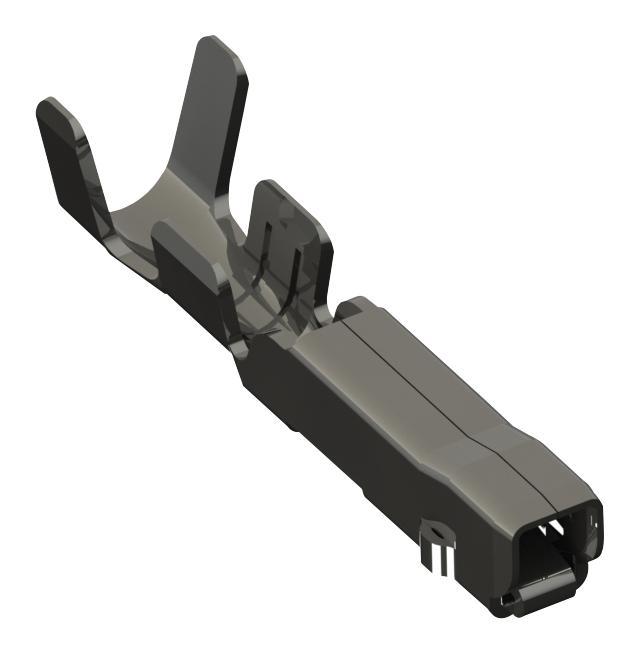

Buy the Buy Edac Series 560 Waterproof Connectors Part Number 565290721P60 Online
Discover the durability and reliability of the Edac Series 560 waterproof connectors, designed for demanding environments requiring waterproofing, secure connections, and versatile configurations. These connectors feature IP67 sealing, 2.5mm pitch, rated for 3A/250V, with preassembled housings, optional waterproof caps, and multiple housing options. Perfect for industrial automation, electronic applications, and outdoor setups, they ensure safe, durable, and easy-to-install connections. Purchase online today for fast delivery and trusted quality to enhance your projects' performance and safety.
Order your Edac Series 560 waterproof connectors including part number 565290721P60 today and ensure reliable, sealed electrical connections for demanding projects.
Frequently Asked Questions
Where can I buy EDAC 565290721P60?
You can click on the BUY or RFQ button to purchase 565290721P60 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 565290721P60?
You can download the 565290721P60 datasheet or visit the EDAC website for support.
Who is the manufacturer of 565290721P60?
EDAC
