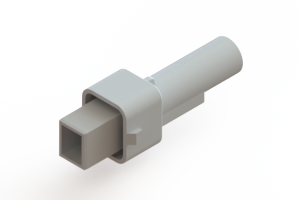

EDAC 568001000100 Waterproof Connector
The 568 series waterproof connector offers a durable and splashproof solution for industrial wiring applications. Featuring a silicone rubber wire seal and a robust PBT body with UL94V-0 flammability certification, it ensures long-lasting performance with a rated current of 12A max. Its waterproof grade IP52 (JIS C0920) and a temperature range from -40°C to 105°C make it suitable for harsh environments. Designed with brass contacts, it supports reliable electrical connections with a consistent insulation resistance of at least 1000 megaohms at 500VDC, ideal for secure single-position plug and receptacle setups in industrial settings.
EDAC 568001000100 Waterproof Connector Specifications:
- Rated Current: 12A max
- Rated Voltage: 300V
- Withstanding Voltage: 1700V AC (rms)
- Insulation Resistance: 1000 megaohms min. at 500VDC
- Contact Resistance: 10 milliohms max
- Operating Temperature Range: -40°C to 105°C
- Material: PBT insulator, brass contacts with tin plating, silicone rubber wire seals
- Waterproof Grade: IP52 (JIS C0920)
- Flammability: UL 94V-0
- Dimensions: Compatible with wire sizes 22-20 AWG, ins. diameter approx. 3.1 mm
- Includes: Plastic latch for secure locking, plug and receptacle options
- Certification: UL Listed, CE compatible
Buy the ENAG 568001000100 – Reliable Waterproof Connectors for Industrial Applications
Enhance your industrial wiring projects with the waterproof connector designed for reliable, splashproof power and signal connections. Featuring high-quality silicone rubber seals and a durable PBT body, this connector supports a maximum current of 12A and a voltage of 300V. Its IP52 waterproof grade ensures protection against dust and water ingress, making it perfect for harsh environments. Easy to install, with brass contacts plated in tin for corrosion resistance, this component guarantees long-lasting performance. Purchase online today for secure, efficient, and maintenance-free connectivity in your industrial electrical systems.
Get ENAG 568001000100 today—built for durability, waterproofing, and secure electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy EDAC 568001000100?
You can click on the BUY or RFQ button to purchase 568001000100 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 568001000100?
You can download the 568001000100 datasheet or visit the EDAC website for support.
Who is the manufacturer of 568001000100?
EDAC
