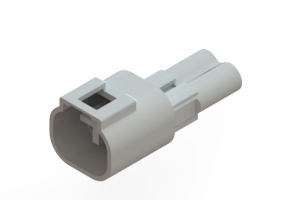

EDAC 570002000100 Waterproof Wire to Wire Connector
The EDAC 570 series connectors are designed for demanding applications requiring a reliable and waterproof connection. These connectors offer a 5.8mm pitch, a maximum current rating of 10A, and are certified to IP67 standards, ensuring protection against dust and water ingress. Available in wire-to-wire and wire-to-board configurations, they feature internal polarization to prevent mismating and are compatible with a wide range of wire sizes. The connectors utilize PBT housing material and offer tin plating for enhanced durability and performance. Ideal for automotive, industrial automation, and outdoor equipment applications.
EDAC 570002000100 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 1, 2, 3
- Pitch: 5.8mm
- Rated Voltage: 300 V
- Rated Current: 10 amps maximum
- Dielectric Withstanding Voltage: 1700 V AC (rms)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Material (Housing): PBT, UL 94V-0
- Material (Contact): Ph. Brz. or Brass
- Contact Plating: Tin Plating
Buy the 570-002-000-100 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 570-002-000-100 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 570002000100?
You can click on the BUY or RFQ button to purchase 570002000100 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 570002000100?
You can download the 570002000100 datasheet or visit the EDAC website for support.
Who is the manufacturer of 570002000100?
EDAC
