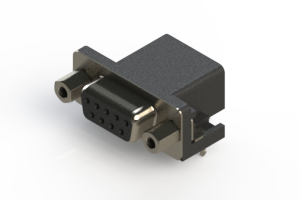

EDAC 626009662032 D-Sub Connector
The EDAC 626 series D-Sub connectors are designed for applications requiring a right-angle configuration and reliable signal transmission. These connectors feature a thermoplastic polyester insulator, copper alloy contacts with selective gold plating for the mating area and tin plating for the tail area, and a nickel-plated steel shell providing EMI/RFI shielding. They are compliant with MIL-C-24038, EIA RS-232, and RS-449 standards, making them suitable for a wide range of industrial and commercial applications. Board mounting options include threaded holes and boardlocks for secure attachment.
EDAC 626009662032 D-Sub Connector Specifications:
- Insulator Material: Thermoplastic Polyester, UL 94V-0
- Contact Material: Plug (Pins): Copper Alloy, Receptacle (Socket): Copper Alloy
- Contact Plating: Selective Gold over Nickel (Mating Area), Tin (Tail Area)
- Shell Material: Nickel Plated Steel
- Current Rating: 3 amps
- Contact Resistance: 25 Milliohms maximum
- Insulation Resistance: 5000 megaohms minimum
- Dielectric Withstanding Voltage: 1000 V AC rms at Sea Level
- Operating Temperature: -55°C To +85°C (+125°C max)
- Insertion Force: 16 oz (4.45 N) Maximum Per Contact Position
- Withdrawal Force: 1 oz (0.28 N) Minimum Per Contact Position
