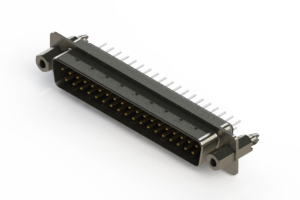

EDAC 627037220047 D-Subminiature connector
This is a D-Subminiature plug connector featuring 37 contacts with gold flash plating (Class 3). It is designed for secure mounting using a #4-40 UNC threaded standoff with boardlocks, ensuring reliable electrical connection and stability. Crafted from thermoplastic polyester UL 94V-0, the connector provides excellent chemical resistance. The brass contact material, with optional nickel plating, offers a current rating of up to 3-5 amps and contact resistance of 25 milliohms max. Suitable for various panel mounting options, it complies with MIL-C-24038, EIA RS-232, and RS-449 standards.
EDAC 627037220047 D-Subminiature connector Specifications:
- Insulator Material: Thermoplastic polyester, UL 94V-0, chemical resistant, color: Black
- Contact Material: Brass with optional nickel plating, gold flash over nickel on mating area
- Current Rating: 3-5 amps
- Contact Resistance: 25 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum
- Dielectric Withstanding Voltage: 1000 V AC rms at Sea Level
- Operating Temperature: -55°C to +125°C
- Contact Configuration: 37 contacts
- Contact Style: Pin and socket, P.C. tail termination
- Mounting: Panel mount with threaded standoff #4-40 UNC, boardlocks included
- Dimensions: Varies by model, typical contact pitch 0.109 inch (2.77 mm), row spacing 0.112 inch (2.84 mm)
Buy the EDAC Series 627 D-Subminiature Connector: 627037220047
Order the EDAC Series 627 D-Subminiature connector with 37 contacts and gold flash plating online today. Designed for secure, reliable connections in industrial and electronic applications, it features a robust thermoplastic insulator, brass contacts with optional nickel plating, and is compatible with panel mounting using threaded standoffs and boardlocks. This connector meets MIL-C-24038, EIA RS-232, and RS-449 standards and offers excellent resistance to environmental stress, ensuring optimal performance for your projects. Purchase now for quick delivery and exceptional quality.
Buy EDAC Series 627 D-Subminiature connector with 37 contacts and gold flash plating now and experience unmatched electrical stability and durable mounting.
Frequently Asked Questions
Where can I buy EDAC 627037220047?
You can click on the BUY or RFQ button to purchase 627037220047 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 627037220047?
You can download the 627037220047 datasheet or visit the EDAC website for support.
Who is the manufacturer of 627037220047?
EDAC
