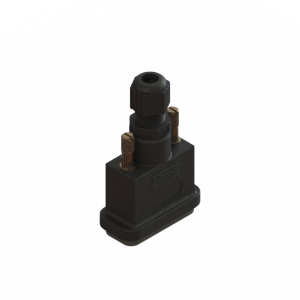

EDAC 627230009010 Waterproof D-Sub Connector
The EDAC 627-230-009-010 is a standard density, waterproof D-Sub connector engineered for demanding environments. Constructed with an ABS, UL94V-0 black housing, silicon gasket, O-ring, and seal, it provides reliable protection against moisture and contaminants. The connector is compliant with European Union Directives and boasts an IP67 degree of protection as per IEC60529. Its temperature range (-35°C to +116°C for silicon components, 0°C to +80°C for ABS) makes it suitable for a wide range of industrial applications requiring secure and durable connectivity.
EDAC 627230009010 Waterproof D-Sub Connector Specifications:
- abs_temperature_rating: 0°C ~+80°C
- silicon_temperature_rating: -35°C ~+116°C
- sealing_nut_material: ZYTEL, Black
- housing_material: ABS, UL94V-0, Black
- gasket_material: Silicon, Black
- o_ring_material: Silicon, Black
- screw_material: Brass, Nickel Plated
- body_nut_material: ZYTEL, Black
- seal_material: Silicon, Black
- pressure_washer_material: Silicon, Black
- degree_of_protection: IP67 (IEC60529)
- rohs_compliance: Compliant 2011/65/EU
Buy the 627-230-009-010 EDAC Waterproof D-Sub Connector | myMectronic
Purchase the EDAC 627-230-009-010 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 627230009010?
You can click on the BUY or RFQ button to purchase 627230009010 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 627230009010?
You can download the 627230009010 datasheet or visit the EDAC website for support.
Who is the manufacturer of 627230009010?
EDAC
