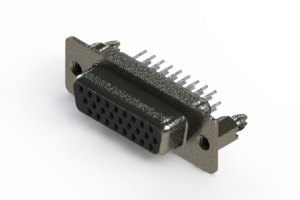

EDAC 638026230046 High Density D-Sub Connector
This high-density D-Subminiature receptacle connector featuring 26 contacts with gold flash plating offers reliable electrical connections and durability. Designed with a nickel-plated steel shell and brass or phosphor bronze contacts, it provides excellent EMI/RFI shielding and grounding features like boardlocks for secure mounting. Operating within -55°C to +85°C, it is suitable for demanding applications requiring high pin counts and robust performance. Compatible with panel mount configurations, it is ideal for use in electronic equipment requiring precise, high-density interconnections.
EDAC 638026230046 High Density D-Sub Connector Specifications:
- Insulator Material: PBT with glass fiber, UL 94V-0, color: Black
- Plug (pin): Brass
- Receptacle (socket): Brass or phosphor bronze
- Contact Plating: Selective gold over nickel for mating area, tin for tail area
- Shell Material: Nickel plated steel
- Current Rating: 3 amps
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum at sea level
- Operating Temperature: -55°C to +85°C (up to +125°C for high temp)
- Insertion Force: 16 oz (4.45 N) maximum per contact
- Withdrawal Force: 10 oz (0.28 N) minimum per contact
- Dimensions: Based on 26 contact configuration, with mounting options including through hole and threaded standoffs
Buy the Edac Series 637-026 D-Sub Connector: 638026230046
Purchase the Edac high-density D-Sub connector, featuring 26 contacts with gold flash plating, designed for high-performance electronic connections. It offers reliable contact resistance, excellent EMI/RFI shielding, and secure mounting options including boardlocks and threaded inserts. Suitable for demanding applications, it operates efficiently within a temperature range of -55°C to +85°C. Engineered with durable materials like nickel-plated steel shell and brass contacts, this connector ensures lasting performance in critical electronic systems. Order online today for fast and secure delivery and elevate your electronic assemblies with confidence.
Get Edac 638026230046 high-density D-Sub connector today—built for precision and long-lasting durability with secure mounting features and EMI/RFI shielding.
Frequently Asked Questions
Where can I buy EDAC 638026230046?
You can click on the BUY or RFQ button to purchase 638026230046 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 638026230046?
You can download the 638026230046 datasheet or visit the EDAC website for support.
Who is the manufacturer of 638026230046?
EDAC
