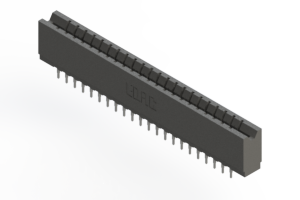

EDAC 737044520206 Card Edge Connector
This is an Ultra Mate compliant pin card edge connector featuring a press-fit contact system. It has a contact spacing of 0.156 inches (3.96mm), a total of 44 contacts, and contact points with P.C. Tail regular points. The tail length measures 0.175 inches (4.45mm). The connector supports single and dual row configurations, accepts 0.062" thick P.C. boards, and features a high profile insulator body with notched ends. It offers reliable gas-tight connections, RoHS compliance, and UL certification for safe, industry-standard performance in electronic assemblies.
EDAC 737044520206 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96mm)
- Row spacing: 0.200 inches (5.08mm)
- Accepts 0.062 inches (1.57mm) thick P.C. boards
- Insulator material: UL 94V-0 thermoplastic polyester, black
- Contact material: Copper alloy
- Contact plating: 30 microinches gold on mating area, tin on tails with nickel underplate
- Current Rating: 3 amps
- Contact resistance: maximum 10 milliohms
- Dielectric Withstanding Voltage: 1200 V AC rms
- Insulation Resistance: minimum 5000 megaohms
- Operating Temperature: -40°C to +105°C
- Insertion Force: maximum 16 oz (4.45 N) per contact
- Withdrawal Force: 10-20 lbs (44-89 N)
- Re-insertability: minimum 3 times
- RoHS compliant & UL certified
Buy the Buy Ultra Mate Card Edge Connector Part Number 737044520206 Online
Secure your electronic assemblies with the high-quality Ultra Mate Card Edge Connector. Featuring a 0.156-inch pitch, dual row configurations, and a press-fit system, this connector ensures gas-tight, reliable connections suited for advanced electronic devices. RoHS compliant and UL certified, it supports 3A current, with easy re-insertion up to three times. Perfect for industries demanding precision and safety, you can conveniently purchase this connector online to streamline your manufacturing and maintenance needs.
Buy Ultra Mate 737044520206 now and experience unmatched reliability and performance with certified RoHS compliance and gas-tight connections.
Frequently Asked Questions
Where can I buy EDAC 737044520206?
You can click on the BUY or RFQ button to purchase 737044520206 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 737044520206?
You can download the 737044520206 datasheet or visit the EDAC website for support.
Who is the manufacturer of 737044520206?
EDAC
