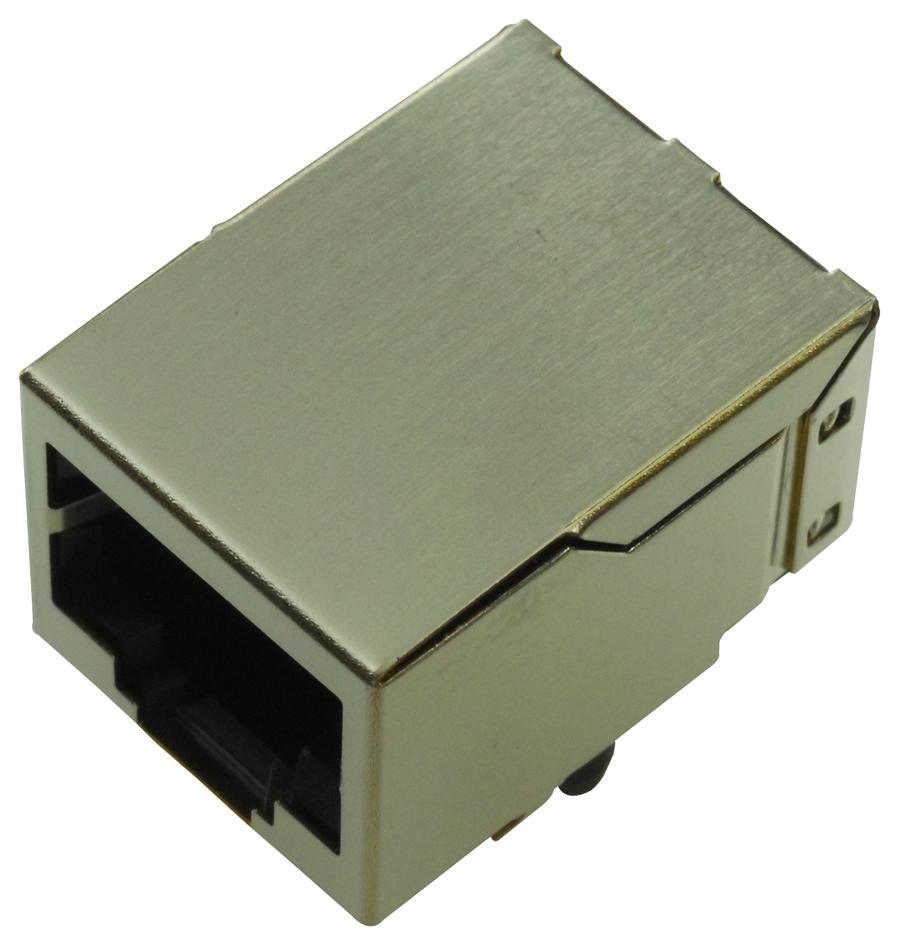

EDAC A00108662450 RJ45 Modular Jack
High-performance modular RJ45 jack designed for high-speed data, voice, and telecommunications applications. Features include industry-standard footprint, low profile options, optional shielding, advanced EMI/RFI protection, and compatibility with various panel mounting configurations. Constructed with UL 94V-0 rated PBT polyester housing, phosphor bronze contacts with gold and tin plating, and rated for 1.5A and 125V AC. Suitable for wave soldering processes, operating from -40°C to +85°C, meeting FCC Part 68, RoHS compliance, and various shielding options for optimal signal integrity.
EDAC A00108662450 RJ45 Modular Jack Specifications:
- Housing Material: PBT Polyester, UL 94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Gold on contact area, Tin on tails with Nickel underplating
- Current Rating: 1.5A @25°C
- Voltage Rating: 125V AC
- Contact Resistance: 20 mΩ max
- Dielectric Withstanding Voltage: 1000 VAC
- Insulation Resistance: 500 MΩ min
- Durability: 750 cycles min
- Operating Temperature: -40°C to +85°C
- Wave Soldering Temperature: 260°C + 5°C for 5-10 seconds
Buy the Buy Edac Series AOO Modular RJ45 Jack Part Number A00108662450 Online
Enhance your networking infrastructure with this high-performance RJ45 modular jack designed for seamless high-speed data and voice connectivity. Featuring advanced EMI/RFI shielding options, industry-standard footprint, and durable construction with UL 94V-0 rated housing. Ideal for telecommunications, broadcast, and data equipment, it ensures optimal signal integrity and long-lasting performance. Easy to install and fully compatible with wave soldering processes, this RoHS-compliant jack is your solution for reliable, high-speed networking needs. Purchase online today for fast delivery and excellent support.
Buy Edac Series AOO modular RJ45 jack now and experience reliable high-speed networking for voice and data applications.
Frequently Asked Questions
Where can I buy EDAC A00108662450?
You can click on the BUY or RFQ button to purchase A00108662450 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part A00108662450?
You can download the A00108662450 datasheet or visit the EDAC website for support.
Who is the manufacturer of A00108662450?
EDAC
