ELECTROSWITCH D4G0205N Rotary Switch
The D4G0205N is a five-position rotary switch featuring glass epoxy insulation and non-shorting contacts. This non-illuminated switch from the D4 series offers an economical and versatile solution in open frame rotary switch lines. It provides a high-quality feel with a ball and spring index mechanism and is available with a 30° adjustable stop. The switch supports solder lug termination, and the mounting nut and lock washer are shipped pre-assembled. Key specifications include an average initial contact resistance of 3.5 mΩ, an insulation resistance of 750 MΩ, and a dielectric strength of 1500 VAC between current-carrying parts and ground. Suitable for industrial applications.
ELECTROSWITCH D4G0205N Rotary Switch Specifications:
- Number of Positions: 5
- Insulation Material: Glass epoxy
- Contact Resistance: 3.5 milliohms (initial)
- Insulation Resistance: 750 megohms or more
- Dielectric Strength: 1500 VAC between current-carrying parts and ground
- Current Rating: 1.5 amps at 28 VDC, 0.5 amps at 115 VAC
- Mounting hardware: Pre-assembled mounting nut and lock washer
- Stop Adjustment: 30° adjustable stop
- Index Mechanism: Ball and spring
- Mounting Type: Panel mount with threaded bushing
- Operating Life: Minimum 25,000 cycles
- Electrical Type: Resistive load, non-shorting contacts
- Material: Brass clips, silver-plated

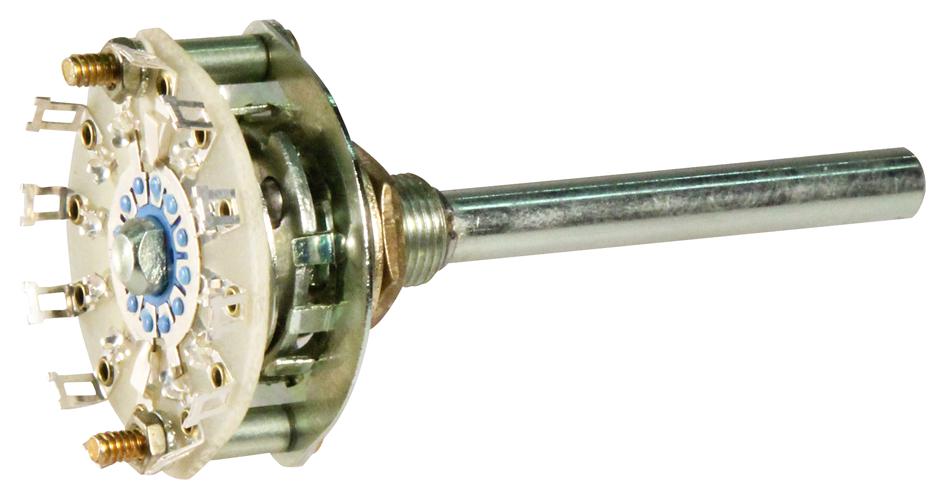

Buy the Daito Series Rotary Switch: D4G0205N
Enhance your control systems with the Daito Series rotary switch D4G0205N, featuring five positions, glass epoxy insulation, and non-shorting contacts. Designed for durability, it offers a 30° adjustable stop and solder lug terminals for easy wiring. The switch has a robust construction supporting up to 1.5 amps at 28 VDC and 0.5 amps at 115 VAC, with an insulation resistance exceeding 750 MΩ and dielectric strength of 1500 VAC. Its high-quality ball and spring index mechanism ensures smooth operation and long life, making it ideal for industrial automation, instrumentation, and control panels.
Order your Daito Series rotary switch D4G0205N today and enjoy reliable performance with versatile features suitable for industrial and control applications.
