EPCOS B57238S0100M000 Datasheet & Stock

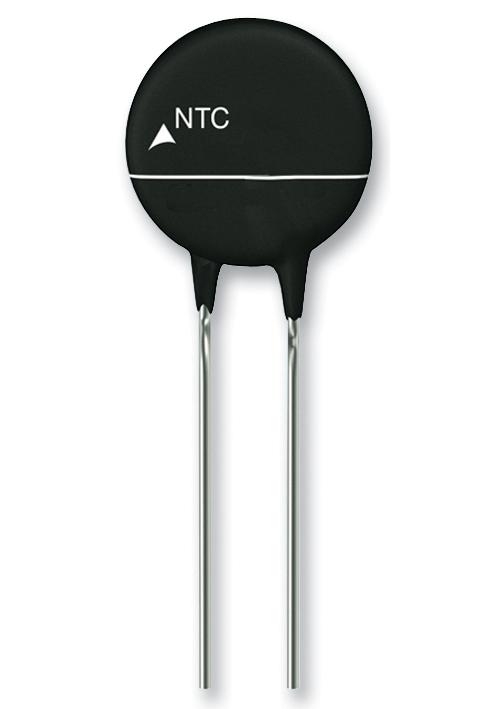

The B57238S0xxxM0xx series from EPCOS are radial leaded NTC thermistors designed as inrush current limiters (ICLs). These thermistors help suppress high inrush currents caused by low impedance components like smoothing capacitors or coils, which can create short circuits upon device startup. The series is suitable for use in switch mode power supplies and soft-start motor applications. Features include a coated thermistor disk for line applications, kinked tinned copper leads, UL (E69802) approval, and a wide resistance range from 2.5 ohms to 25 ohms at 25°C with ±20% tolerance. They support series connections up to 265 Vrms, with maximum steady-state currents from 3.4A to 8.4A and a power rating of 3.9W at 25°C. These components find applications in industrial, consumer electronics, portable devices, power management, motor drive and control, sensing, and instrumentation.
Frequently Asked Questions
Where can I buy EPCOS B57238S0100M000?
You can click on the BUY or RFQ button to purchase B57238S0100M000 from an authorized EPCOS distributor.
How do I troubleshoot issues or seek technical support for part B57238S0100M000?
You can download the B57238S0100M000 datasheet or visit the EPCOS website for support.
Who is the manufacturer of B57238S0100M000?
EPCOS
