EUROTHERM CONTROLS 438020001 Analog Signal Isolator
The 4380-2000-1 is a field-configurable industrial isolator designed for scaling and transmitting analog DC signals. It accepts input voltage ranges from 10mV up to 100V and input current ranges from 1mA to 100mA. The device features adjustable input zero and span potentiometers for 50% zero and span adjustment. It offers four configurable output ranges: 0-5V, 0-10V, 0-1mA, and 4-20mA capable of delivering a compliance voltage of up to 20V DC. The isolator can be configured for bipolar input ranges and offers selectable normal or reverse operation. It is a 3-port device with optical isolation of up to 1500 VDC between input and output, and transformer isolation from the power supply. Features include ground loop elimination, plug-in installation, CSA certification, and UL recognition.
EUROTHERM CONTROLS 438020001 Analog Signal Isolator Specifications:
- Input Voltage Range: 10mV to 100V (AP4380-2000), 10mV to 200V (AP4380-2001)
- Input Current Range: 1mA to 100mA
- Input Impedance: >100K Ohms
- Overvoltage Capacity: Intermittent 400Vrms, Continuous 264Vrms
- Isolation: Optical isolation up to 1500 VDC between input and output, transformer isolated from power
- Output Ranges: 0-5V, 0-10V, 0-1mA, 4-20mA
- Max Output Drive: 10mA for voltage, 20V compliance for 4-20mA
- Power Supply: 120/240VAC, optional 9-30VDC
- Response Time: 200 msec.
- Temperature Range: Operating -15°C to 60°C, Storage -25°C to 70°C

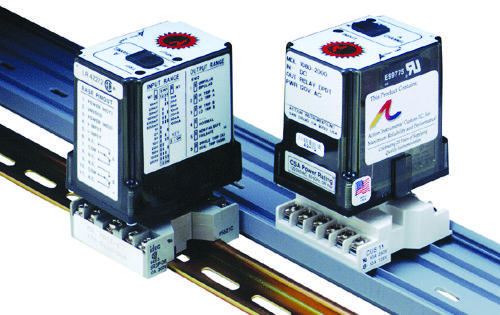

Buy the Buy Eurotherm Action PAK Isolator Part Number 438020001 Online
Purchase the Eurotherm Action PAK 4380-2001 isolator online today to ensure reliable signal transmission and eliminate ground loops. This versatile device supports wide input ranges, configurable output signals, and offers optical isolation up to 1500 VDC, making it ideal for industrial applications. Its plug-in installation and wide power options simplify setup and maintenance. Built with ASIC technology, it enhances reliability and offers precise zero and span adjustments. Secure your signal integrity with this robust, certified isolator by ordering online now for fast delivery and optimal performance.
Buy Eurotherm 438020001 now and experience unmatched reliability and high-precision analog signal isolation for industrial automation applications.
