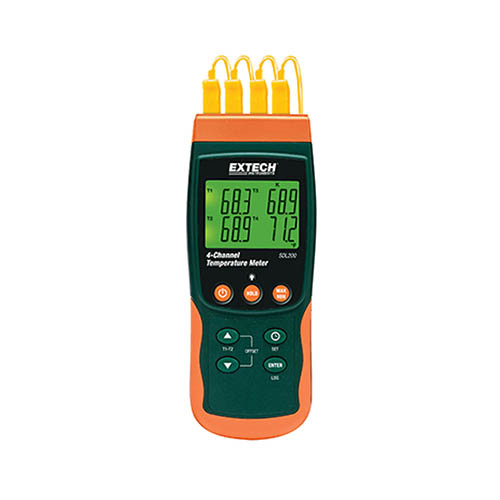

Extech Instruments SDL200 Temperature Data Logger
The 4-Channel Datalogging Thermometer is a reliable device designed for precise temperature monitoring in various industrial applications. It records temperature data from multiple thermocouple types (J, K, E, T, R, S) and RTD probes (Pt1000), storing up to 20 million readings on an SD card for easy transfer and analysis. Features include real-time data logging with timestamps, programmable sampling rates from 1 to 3600 seconds, and functions like Min/Max and Data Hold. Its compact design measures four temperatures simultaneously, ideal for process monitoring, research, and calibration tasks in industrial environments.
Extech Instruments SDL200 Temperature Data Logger Specifications:
- Type J temperature range: -100°C to 1150°C (148°F to 2102°F)
- Type K temperature range: -100°C to 1300°C (148°F to 2372°F)
- RTD Probe (Pt1000): -30°C to 250°C (-22°F to 482°F)
- Type E temperature range: -50°C to 900°C (88°F to 1652°F)
- Type R temperature range: 0°C to 1700°C (32°F to 3092°F)
- Type S temperature range: 0°C to 1500°C (32°F to 2732°F)
- Dimensions: 182 x 73 x 47.5 mm
- Weight: 500 g
- Sampling Rate: 1 to 3600 seconds
- Memory Capacity: 20 million readings via SD card
- Display: Multi-channel temperature readings with date and time stamps
- Power: 6 AA batteries, auto power off feature
- Included Accessories: SD card, carrying case, four general-purpose Type K probes
- Optional Probes: Bead Wire, Clamp, Pipe Clamp, RTD
Buy the Buy Extech SDL200 Temperature Data Logger Part Number 0
Experience precise temperature monitoring with the Extech SDL200 series 4-channel thermometer. It features extensive SD card storage, programmable sampling from 1 to 3600 seconds, and the ability to log data from multiple thermocouple types and RTD probes simultaneously. Compact and easy to operate, it offers real-time data transfer with timestamps, making it ideal for industrial applications, process monitoring, calibration, and research. Order online now to ensure your projects benefit from dependable temperature data collection and analysis.
Order your Extech SDL200 series 4-channel thermocouple and RTD datalogger today and enhance your temperature monitoring with precise, reliable data collection.
Frequently Asked Questions
Where can I buy Extech Instruments SDL200?
You can click on the BUY or RFQ button to purchase SDL200 from an authorized Extech Instruments distributor.
How do I troubleshoot issues or seek technical support for part SDL200?
You can download the SDL200 datasheet or visit the Extech Instruments website for support.
Who is the manufacturer of SDL200?
Extech Instruments
