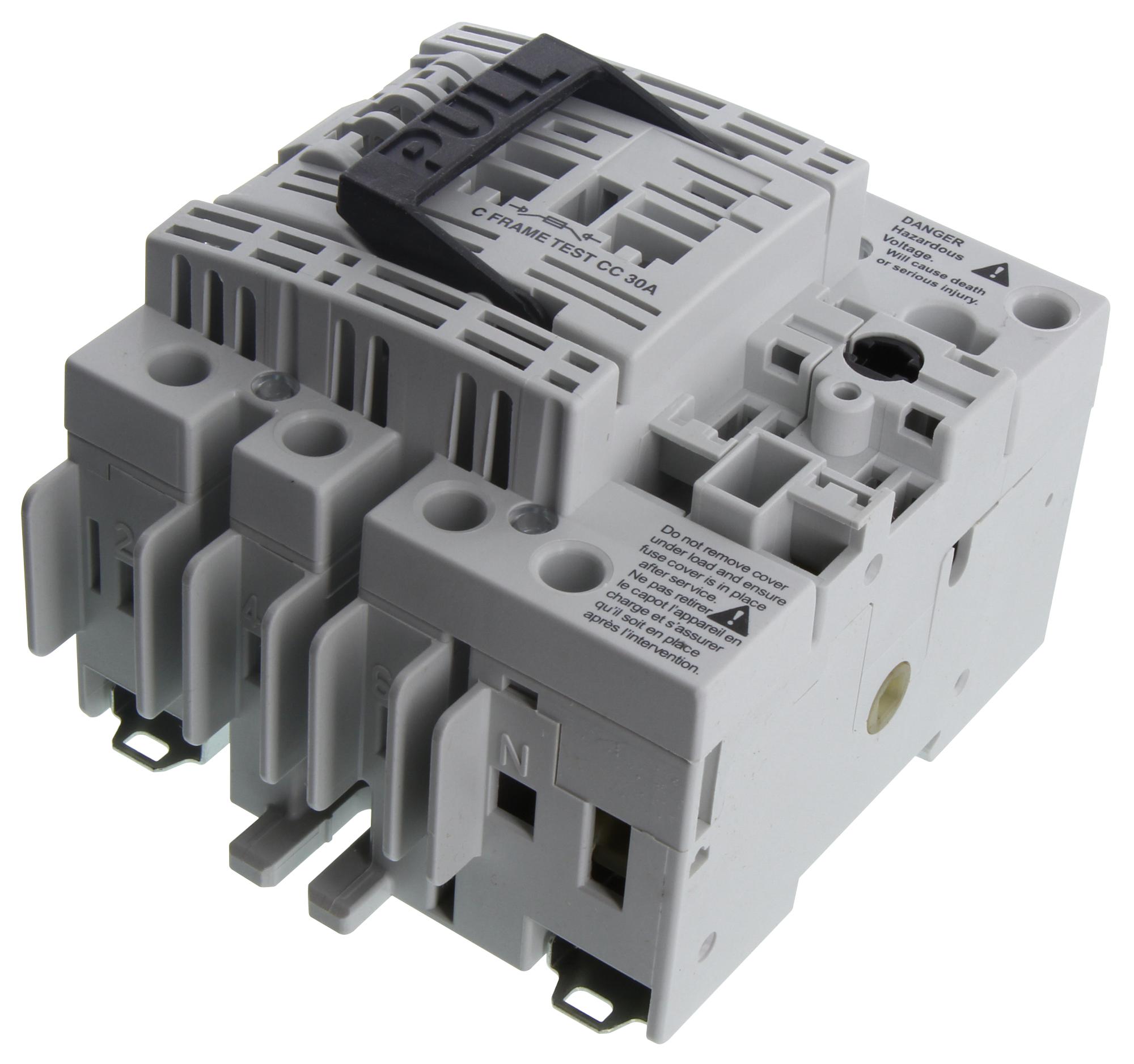

Eaton - Cutler Hammer R4H3030FCC Fusible Disconnect Switch
The R4H3030FCC is a three-pole fusible switch body featuring a compact H-frame design. It is part of the R9 series of manually operated, multi-pole fusible disconnect switches. Equipped with double-break contacts per pole, it ensures complete isolation of the fuse when switched to the OFF position. This switch provides load break functionality and is suitable for industrial applications.
Eaton - Cutler Hammer R4H3030FCC Fusible Disconnect Switch Specifications:
- Frame Designation: H-Frame
- Ampere Rating: 30A
- Number of Poles: 3
- Fuse Type: Fusible
- Maximum Fuse Rating: 30 A
- Short-Circuit Rating at 600 Vac: 100 kA
- Rated Voltage: 600 Vac
- Mechanical Endurance: 10,000 cycles
- Connection Terminals: #6 AWG minimum, #300 AWG maximum
- Dimensions: Approximate in inches - Height: 5.87, Width: 4.56, Depth: 4.92
- Material: Steel, with fuse mounting capability
- Standards: UL 98, CSA 22.2 No. 4, IEC 60947-3
Buy the Eaton Series R9 Fusible 30A: R4H3030FCC
Order the Eaton R4H3030FCC fusible disconnect switch online today. Designed for load break safety and complete fuse isolation, it ensures reliable circuit disconnection. Its compact H-frame is ideal for control panels and industrial settings, with double-break contacts for maximum safety and efficiency. Perfect for applications requiring load break functionality, the switch is UL listed and meets international standards for quality and safety. Purchase now to enhance your system’s safety and compliance effortlessly.
Get Eaton Series R9 fusible disconnect switch today—built for industrial safety and reliable load break performance.
