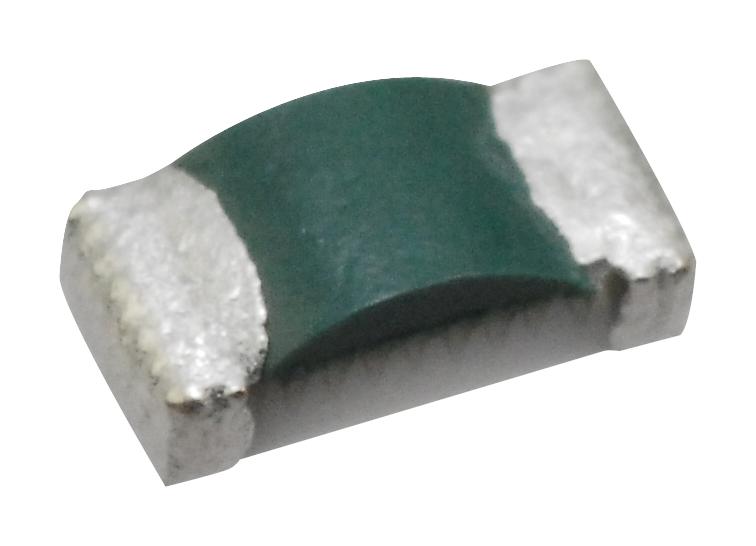

Eaton Bussmann 0603ESDA2TR2 ESD Suppressor Diode
The 0603ESDA2-TR2 is a bidirectional PolySurg™ ESD suppressor diode designed to protect high-speed data circuits from electrostatic discharge (ESD) damage. It features an ultra-low capacitance of up to 0.15pF, ensuring it does not distort data signals, making it ideal for high-frequency and low-voltage applications. The device offers very low leakage current, fast response time, and is halogen-free. Suitable for use in computers, consumer electronics, audio equipment, and communication devices, it ensures reliable signal protection without interference.
Eaton Bussmann 0603ESDA2TR2 ESD Suppressor Diode Specifications:
- Package size: 0603 (EIA Size 1608)
- Maximum Operating Voltage: 44V DC, 35V Peak Pulse Voltage
- Maximum Clamping Voltage: 60V
- Capacitance: 0.10 to 0.15pF
- Peak Discharge Current: 30A @ 8kV contact discharge
- Response Time: Fast
- Temperature Range: -55°C to +105°C
- Reflow Soldering: IR reflow up to 260°C, 3 reflows allowed
- Lead-free, halogen-free materials
- Dimensions: Length 1.6 mm, Width 0.8 mm, Height 0.3 mm
- Compliance: IEC 61000-4-2, Level 4
Buy the PolySurg Series ESD Suppressor: 0603ESDA2TR2
Purchase the PolySurg Series ESD suppressor diode 0603ESDA2TR2 online to protect your high-speed data circuits from electrostatic discharge. Its ultra-low capacitance ensures minimal signal distortion while providing reliable ESD protection. Designed for high-frequency, low-voltage applications, it features a compact 0603 package, rapid response time, and halogen-free, lead-free materials. Perfect for safeguarding computers, consumer electronics, networking, and communication devices, ensuring optimal protection with minimal interference. Order now for fast delivery and enhanced device protection.
Buy PolySurg Series ESD Suppressor 0603ESDA2TR2 now and experience unmatched reliability and high-frequency data circuit protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann 0603ESDA2TR2?
You can click on the BUY or RFQ button to purchase 0603ESDA2TR2 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part 0603ESDA2TR2?
You can download the 0603ESDA2TR2 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of 0603ESDA2TR2?
Eaton Bussmann
