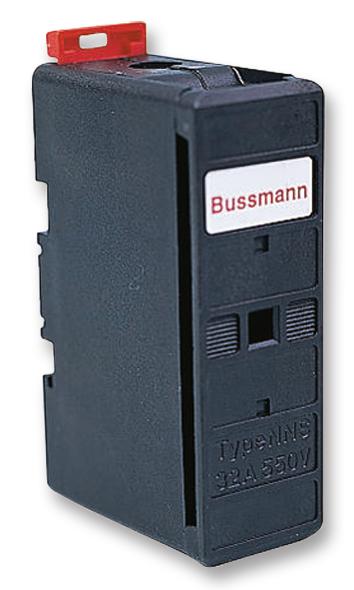

Eaton Bussmann 32NNSF HRC Fuse Holder
The Bussmann SAFELOC HRC Fuse Holders are designed for safe, reliable protection of electrical circuits with offset blade fuse links to BS88:6:1988. Featuring a slide/snap Carrier, they ensure safe insertion and withdrawal, reducing contact resistance and power loss. Constructed from high-impact thermoplastic, they can be mounted on a 35mm DIN rail or fixed with a screw. The base is fully shrouded for personnel safety, with optional anti-rotation pins and neon indicators for fuse status. They support both front connection and back stud configurations, ideal for motor, lighting, and control circuits, with ganging options for multiple poles.
Eaton Bussmann 32NNSF HRC Fuse Holder Specifications:
- Rated for 16 to 70 Amps
- Constructed from glass-filled, high-impact resistant thermoplastic
- Mounting options include 35mm DIN rail or single screw fixing
- Fully shrouded base for operator safety
- Fuses accommodated: offset blade tag fuse links to BS88:1988
- Features patented slide/snap carrier for stress-free fuse insertion
- Supplied with captive screws for fuse fixing
- Optional anti-rotation pin available for secure mounting
- Base dimensions vary by model, typically around 76.2mm to 90mm in width
- Standard colors are black, with options for other colors (W, G, GY)
- Includes wiring terminals with stainless steel saddles and hardened screws for secure cable connection
- Supports both front connection and back stud mounting with converter accessories
- Suitable for use in motor, lighting, heating, and control circuits
- Designed according to BS88:1988 and IEC standards for safety and performance
Buy the Bussmann Series SAFELOC Fuseholders: 32NNSF
Enhance your electrical protection with Bussmann Series SAFELOC HRC Fuse Holders, engineered for safety, efficiency, and quick installation. These durable fuseholders are suitable for a wide range of applications including motor circuits, lighting, and control systems. Built from impact-resistant thermoplastic, they feature a secure shrouded base, captive screws, and versatile mounting options for DIN rail or panel fixing. With safety features like full shrouding and optional anti-rotation pins, they ensure operator safety. Compatible with offset blade fuse links per BS88, they offer reliable performance and easy ganging for multi-pole circuits, making them essential for modern electrical installations.
Order your Bussmann Series SAFELOC fuseholder today and ensure safe, reliable electrical circuit protection with quick installation and robust design.
Frequently Asked Questions
Where can I buy Eaton Bussmann 32NNSF?
You can click on the BUY or RFQ button to purchase 32NNSF from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part 32NNSF?
You can download the 32NNSF datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of 32NNSF?
Eaton Bussmann
