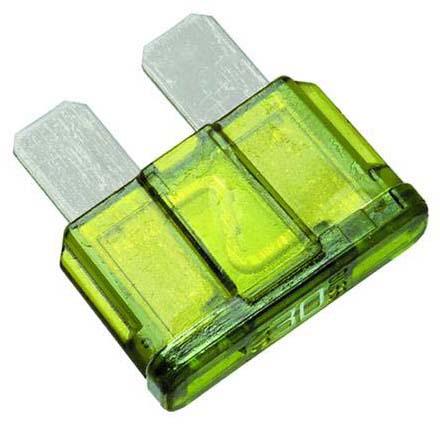

Eaton Bussmann ATC20 Automotive Blade Fuse
This fast-acting fuse is rated at 32 VDC and 20 Amps, suitable for automotive and low-voltage control circuits. It features a blade-type package with dimensions of 19.30mm x 5.25mm x 12.50mm, constructed with tin-plated zinc terminals and housing materials compliant with UL 94 flame rating. The fuse offers reliable performance across a temperature range of -40°C to 100°C and is RoHS compliant. Its unique design ensures quick circuit protection, with high interrupting ratings, making it ideal for automotive troubleshooting and low-voltage circuit protection applications.
Eaton Bussmann ATC20 Automotive Blade Fuse Specifications:
- Voltage Rating: 32 VDC
- Current Rating: 20A
- Type: Fast-acting blade fuse
- Housing Material: Nylon/Polycarbonate (varies by catalog number)
- Terminal Material: Tin-plated zinc
- Dimensions: 19.30mm length x 5.25mm width x 12.50mm height
- Operating Temperature Range: -40°C to 100°C
- Flammability Rating: UL 94
- Compliance: RoHS, UL Recognized
- Interrupting Rating: 1kA
- Test points: Available on specific models
- Application: Automotive and low-voltage control circuits
Buy the Bussmann Series ATC Fuse: ATC20
Purchase the Bussmann ATC20 fuse online today for reliable circuit protection in automotive and low-voltage control systems. Designed for quick response and high durability, this 20A fuse features a compact blade package, UL recognition, and corrosion-resistant tin-plated zinc terminals. Its wide operating temperature of -40°C to 100°C makes it ideal for extreme environments. Easy to install in fuse holders, the ATC20 ensures consistent performance, helping you troubleshoot and safeguard your electrical circuits effortlessly and efficiently. Order now for fast delivery and peace of mind.
Get Bussmann ATC20 today—built for automotive circuit protection with reliable fast-acting design and high-temperature tolerance.
Frequently Asked Questions
Where can I buy Eaton Bussmann ATC20?
You can click on the BUY or RFQ button to purchase ATC20 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part ATC20?
You can download the ATC20 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of ATC20?
Eaton Bussmann
