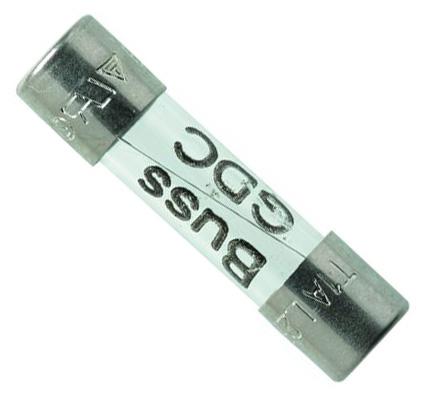

Eaton Bussmann BKGDC315A Time-Delay Glass Fuse
This 5x20mm time-delay glass fuse offers reliable overcurrent protection for electronic and electrical circuits. With a voltage rating of 250 VAC and a current rating of 3.15A, it features a cylindrical glass tube construction with nickel-plated brass endcaps. Designed to IEC 60127-2 standards, it provides slow blow operation to accommodate temporary inrush currents. This fuse is suitable for applications demanding delayed response, has optional axial leads, and is recognized by cURus, IMQ, and MIT approvals for safety and compliance in various device assemblies.
Eaton Bussmann BKGDC315A Time-Delay Glass Fuse Specifications:
- Physical Size: 5x20mm cylindrical glass tube with nickel-plated brass endcaps
- Voltage Rating: 250 VAC
- Current Rating: 3.15A
- Operation Type: Slow blow, time-delay
- Standards: IEC 60127-2 compliant
- Lead Option: Axial leads available with copper tinned wire and nickel-plated brass endcaps
- Interrupting Rating: 1050 A at 250 VAC
- Maximum Temperature: Not specified in the provided data
- Approvals: cURus, IMQ, MIT
- Construction Material: Glass tube, nickel-plated brass endcaps
- Dimensional Tolerance: Standard 5x20mm size
- Packaging: Available in tape on reel (TR2), boxed, or poly bag options
Buy the Coofen Series GDC 3.15A Fuses: 5x20mm Slow Blow Glass Tube
Secure your electronic and electrical systems with the Coofen Series GDC 3.15A time-delay fuse, measuring 5x20mm. It features reliable slow blow operation, rated for 250 VAC and capable of handling 3.15A currents. Constructed with a durable glass tube and nickel-plated brass endcaps, this fuse is designed to prevent unnecessary power interruptions during transient overloads. Perfect for circuits requiring delayed overcurrent protection, it also complies with IEC standards and carries recognized safety approvals. Purchase online now for dependable circuit safeguarding.
Order your Coofen Series GDC 3.15A fuse today and ensure reliable delayed overcurrent protection for your electrical circuits with genuine quality.
Frequently Asked Questions
Where can I buy Eaton Bussmann BKGDC315A?
You can click on the BUY or RFQ button to purchase BKGDC315A from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part BKGDC315A?
You can download the BKGDC315A datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of BKGDC315A?
Eaton Bussmann
