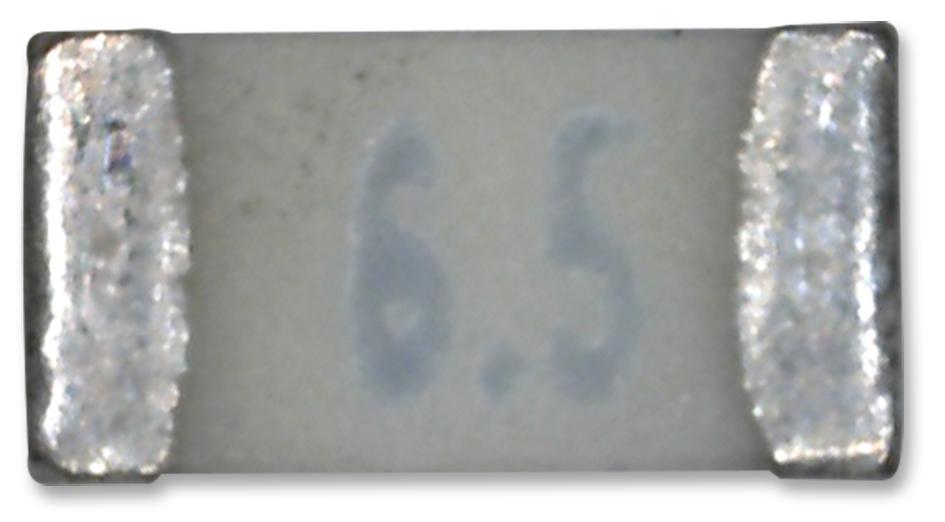

Eaton Bussmann CC06H6ATR High I Chip Fuse
The EATON BUSSMANN CC06H6A-TR is a high-current chip fuse ideal for protecting sensitive electronic circuits in a variety of applications. Its compact 0603 size minimizes board space usage, while its fast-acting performance and high inrush withstand capability ensure reliable protection. This fuse is suitable for LCD backlight inverters, digital cameras, DVD players, Bluetooth headsets, and battery packs. It is halogen-free, lead-free, and RoHS compliant, making it an environmentally responsible choice. The fuse features standard termination design for easy solderability and is compatible with both lead-free solder reflow and wave soldering processes.
Eaton Bussmann CC06H6ATR High I Chip Fuse Specifications:
- Amp Rating: 1-8 A
- Opening Time: 4 Hours (at 100% of Amp Rating)
- Typical Cold Resistance: 0.0076 Ω (at 6A)
- Typical Pre-Arcing I2t: 2.6 (at 6A)
- Voltage Rating: 32 Vdc
- Interrupting Rating: 50 A
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +85 °C
- Halogen Free: Yes
- Lead Free: Yes
- RoHS Compliant: Yes
- Fuse Size: 0603 (1608 metric)
