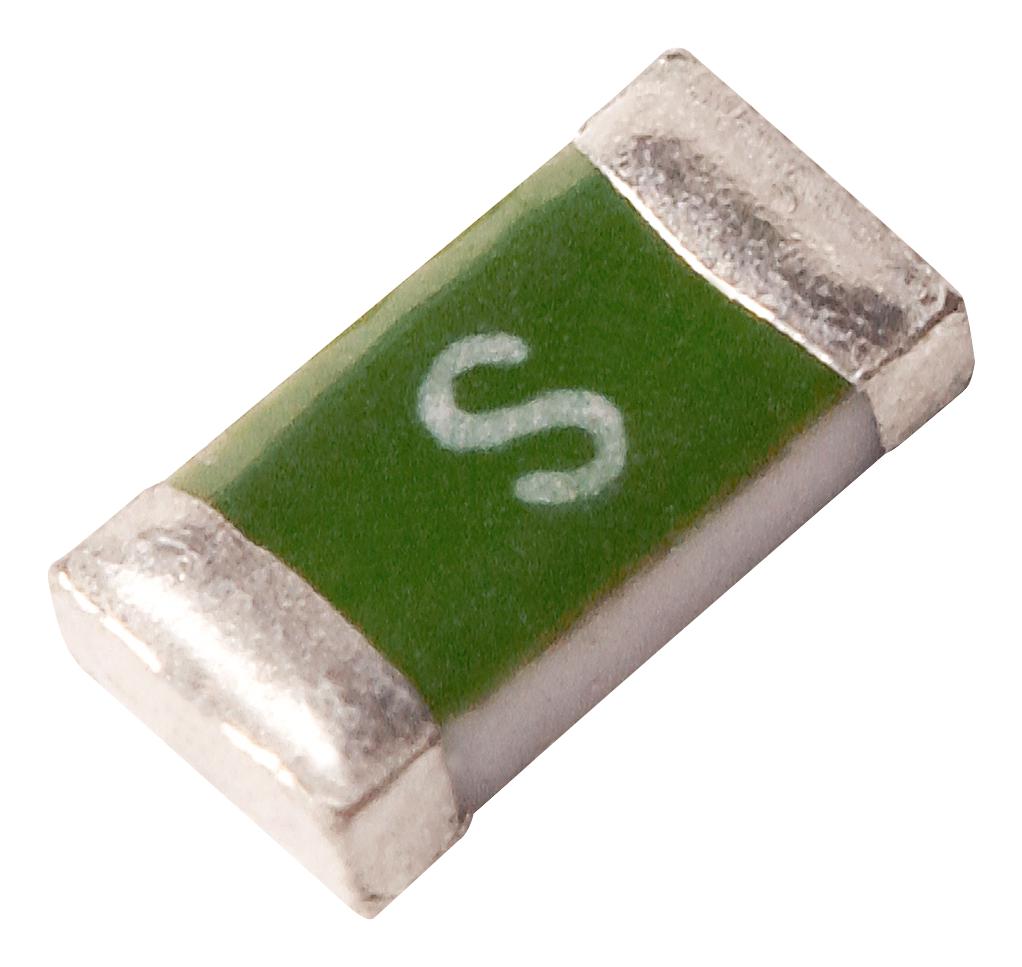

Eaton Bussmann CC12H3ATR High I?t Chip Fuse
This high I?t chip fuse rated for 63 VDC and 3 amps offers excellent inrush withstand capability and is suitable for surface mount applications. It features a compact 1206 package measuring 3.20mm x 1.60mm x 0.60mm, designed to save board space while providing reliable circuit protection in electronic devices. Qualified under AEC-Q200 standards, it ensures durability and performance in automotive and consumer electronics applications. With excellent temperature and cycling characteristics, this fuse is ideal for secondary circuit protection in various high-reliability systems such as laptops, tablets, HDTVs, and automotive control modules.
Eaton Bussmann CC12H3ATR High I?t Chip Fuse Specifications:
- Rated Voltage: 63 VDC
- Amp Rating: 3 A
- Package Size: 1206 (3.20mm x 1.60mm x 0.60mm)
- Mounting Type: Surface Mount
- Temperature Range: -55°C to +125°C (derated at higher currents)
- Qualification: AEC-Q200 compliant
- Features: High inrush withstand, cycling capability
- Applications: Automotive, consumer electronics, secondary circuit protection, HDTVs, tablets, control modules
Buy the Eaton Series CC12 High I?t Chip Fuse: CC12H3ATR
Purchase the Eaton Series CC12H3ATR high I?t chip fuse online today and enjoy quick delivery. Designed for 63 VDC and 3A applications, this fuse offers excellent inrush withstand and cycling performance in a compact 1206 surface mount package. Its rugged design ensures reliable operation in automotive, consumer electronics, and secondary circuit protection. With AEC-Q200 qualification, it guarantees durability and high temperature cycling resistance, making it the ideal choice for engineers seeking dependable, space-saving circuit protection solutions in complex electronic systems.
Order your Eaton Series CC12H3ATR high I?t chip fuse today and ensure reliable circuit protection for your automotive and electronic projects.
Frequently Asked Questions
Where can I buy Eaton Bussmann CC12H3ATR?
You can click on the BUY or RFQ button to purchase CC12H3ATR from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part CC12H3ATR?
You can download the CC12H3ATR datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of CC12H3ATR?
Eaton Bussmann
