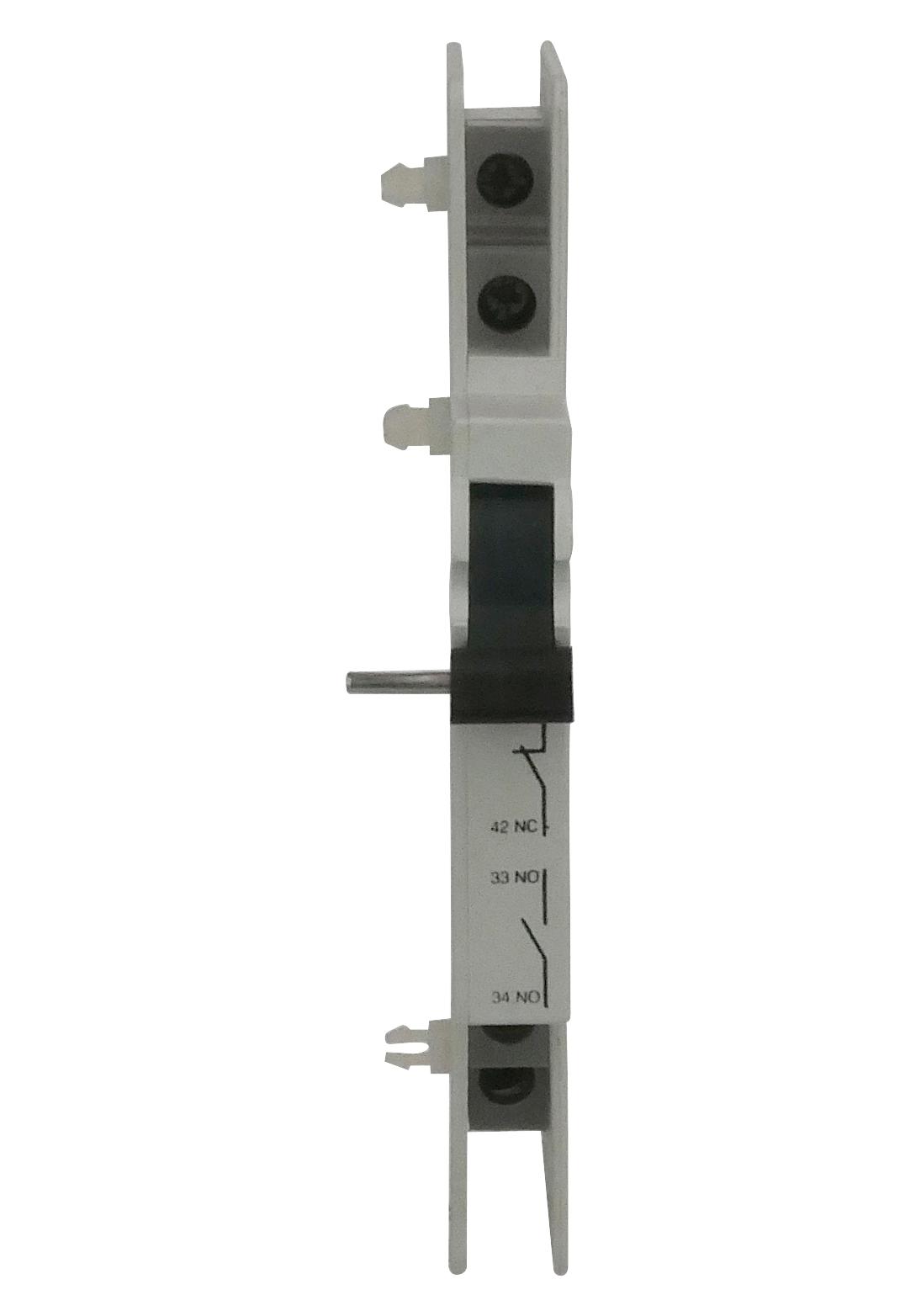

Eaton Bussmann CCP2AUX Circuit Protector
The Compact Circuit Protector is a UL 98 listed fuse disconnect switch designed for industrial circuit protection up to 200 amps. It features UL Class CF time-delay or fast-acting CUBEFuse options with Class J electrical performance. Its compact design reduces footprint by up to 69%, providing a high SCCR of 200 kA for safer, efficient system protection. Suitable for panel integration, it offers rotary and flange handle operation, multi-wire lug compatibility, auxiliary contacts, and optional PLC fuse monitoring for optimized electrical safety and remote status indication.
Eaton Bussmann CCP2AUX Circuit Protector Specifications:
- Voltage Ratings: 347 Vac (1-pole), 600 Vac (2- and 3-pole)
- Current Ratings: 30A, 60A, 100A, 200A
- Short Circuit Current Rating (SCCR): 200 kA RMS Sym., 100 kA DC
- Enclosure Size: 10”x8”x6” for 30/60A, 12”x10”x6” for 100A, 16”x12”x6” for 200A switches
- Operating Temperature: -20°C to 75°C (-4°F to 167°F)
- Conductor Compatibility: Copper and Aluminum, 75°C rated
- Terminal Data: Fork terminals suitable for screw sizes 10-24 (30/60A) and 1/4-28 (100A), torque as specified
- Material: Finger-safe with UL listed wire sizes, includes multi-wire lug options
- Operation: Rotary and flange handle options, lockable with 1/4” padlock, through-the-door and side operation
- Standards: UL 98, cULus, RoHS compliant
- Additional Features: Built-in fuse indication, optional PLC fuse monitor, phase barriers, terminal shrouds, lockout/tagout provisions
Buy the Eaton CCP2 – Reliable Circuit Protection for Industrial Applications
Purchase the Eaton CCP2 Compact Circuit Protector online today—engineered for reliable circuit protection in industrial environments. This high-performance switch features UL 98 listing, up to 200A ratings, high SCCR, and compact design for easy integration. Compatible with fused disconnects, rotary and flange handles, multi-wire lug kits, auxiliary contacts, and optional PLC fuse monitors, it ensures safety, ease of use, and long-term durability. Perfect for panels, automation, and industrial control systems, order now for immediate shipping and seamless installation.
Get Eaton CCP2 today—built for precision and long-lasting durability in industrial power control.
Frequently Asked Questions
Where can I buy Eaton Bussmann CCP2AUX?
You can click on the BUY or RFQ button to purchase CCP2AUX from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part CCP2AUX?
You can download the CCP2AUX datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of CCP2AUX?
Eaton Bussmann
