Eaton Bussmann CCP2SM Circuit Switch
The Bussmann series CCP2 is a high-performance UL 98 listed compact circuit protector available in 30, 60, 100, 200, and 400-amp configurations. Designed with UL Class CF time-delay or fast-acting CubeFuse™ technology, these switch-only disconnects feature a compact footprint up to 69% smaller than traditional solutions, offering a high 200 kA SCCR for enhanced safety and reliability. They support rotary and flange operation, come with auxiliary contacts, and include accessories like lugs, terminal shrouds, and handle mechanisms, making them suitable for branch circuit protection and load isolation in diverse applications.
Eaton Bussmann CCP2SM Circuit Switch Specifications:
- Volts: 347 Vac (1-pole), 600 Vac (2- and 3-pole)
- Amps: 30A, 60A, 100A, 200A, 400A
- SCCR: 200 kA RMS Sym.
- Poles: 1-, 2-, and 3-poles, catalog number dependent
- Mounting: Panel mount with various rotary and flange accessories
- Temperature Range: -20°C to 75°C
- Conductor Terminals: Fork lug suitable for 10-24 screw (30, 60A), 1/4-28 screw (100A), compatible with UL rated copper and aluminum conductors
- Ratings: UL 98 listed, RoHS compliant, CE
- Fuse Compatibility: UL Class CF time-delay or fast-acting CubeFuse™ 6-100A, 600VAC
- Physical Dimensions: 16 x 12 x 6 inches (for 200A); 24 x 16 x 8 inches (for 400A)

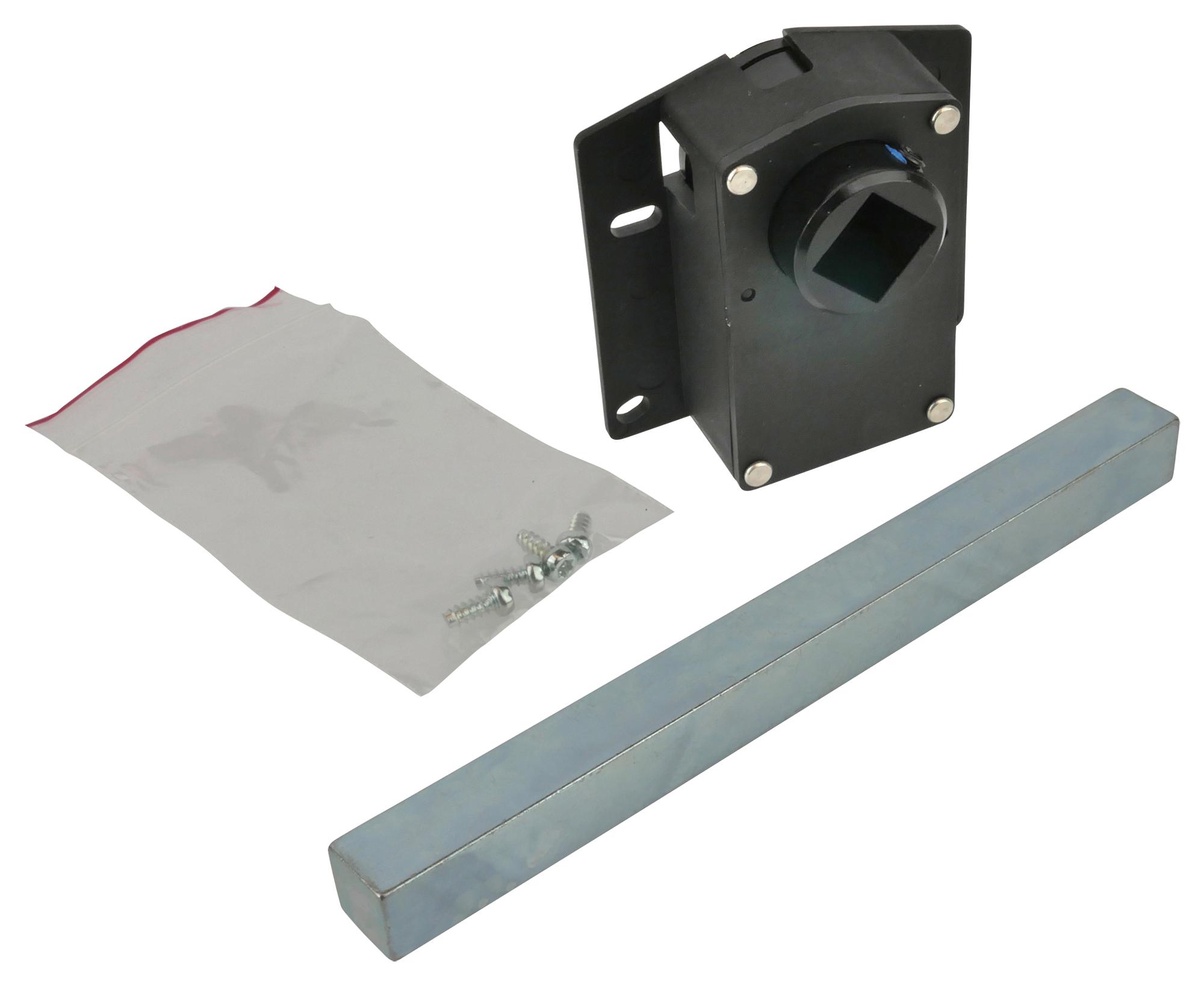

Buy the Eaton Series CCP2 High-Current Circuit Switch: CCP2-100CF
Discover the Eaton CCP2 high-current circuit switch, designed for reliable load separation and branch circuit protection. Compact, high SCCR, and versatile with rotary and flange options, this switch meets UL 98 standards and is RoHS compliant. It supports various accessories including lugs, terminal shrouds, and handle mechanisms for safe and flexible installation. Perfect for industrial and commercial electrical systems requiring load isolation, these switches provide a high 200 kA SCCR, up to 600 VAC, and are suitable for diverse environments promoting safety and efficiency.
Order your Eaton Series CCP2 100A switch today and give your electrical panels the reliable protection they need.
Frequently Asked Questions
Where can I buy Eaton Bussmann CCP2SM?
You can click on the BUY or RFQ button to purchase CCP2SM from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part CCP2SM?
You can download the CCP2SM datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of CCP2SM?
Eaton Bussmann
