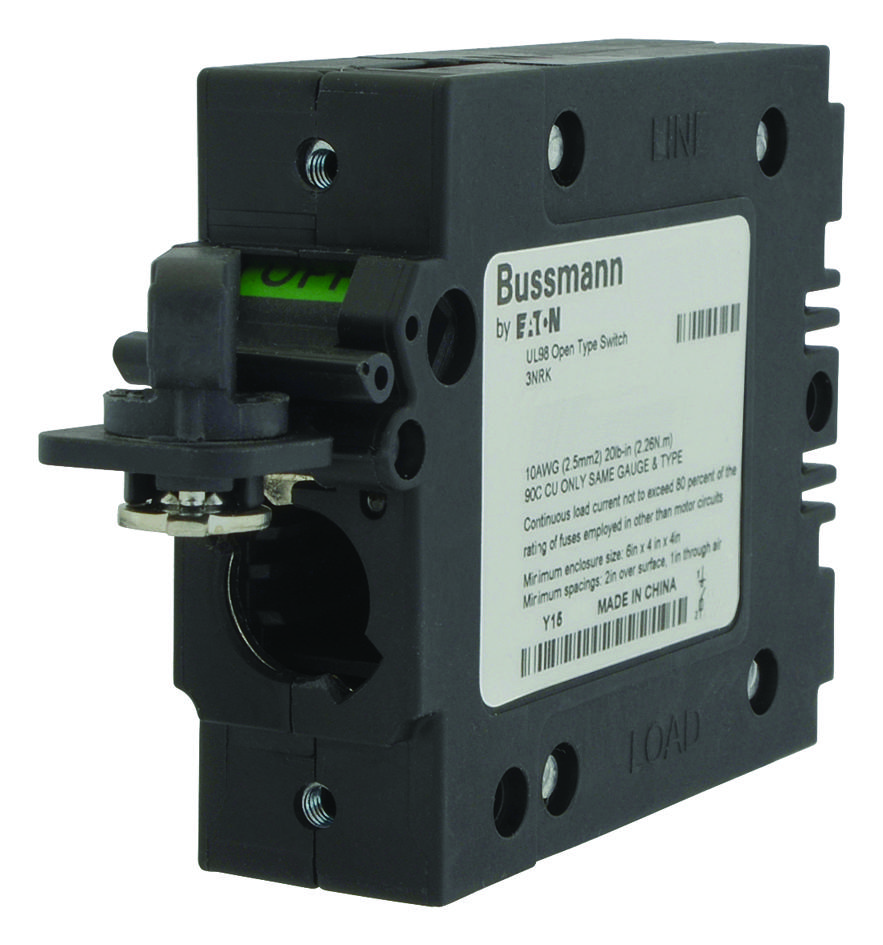

Eaton Bussmann CCPLP120GP Fused Disconnect Switch
The Bussmann by Eaton CCPLP-1-20G-P is a single-pole, Class G low-profile fused disconnect switch with a compact 19mm footprint per pole. It is UL 98 listed and IEC 60947-3 AC-23A approved, rated up to 600VAC and 20A. The switch offers high short circuit current ratings up to 100kA, impulse voltage of 8kV, and operates in temperatures from -20°C to 90°C with 85% humidity non-condensing. It includes a pressure plate terminal for #10-32 screw with 22-6 AWG wire, local open fuse indication, and finger-safe IP20 enclosure designed for industrial safety and load isolation.
Eaton Bussmann CCPLP120GP Fused Disconnect Switch Specifications:
- Rating: 600VAC, 20A
- Poles: 1
- SCCR: Up to 100kA
- Impulse Voltage: 8kV
- Temperature Range: -20°C to 90°C
- Humidity: 85% non-condensing
- Enclosure: Finger-safe IP20
- Terminal: #10-32 screw pressure plate, accepts 22-6 AWG wire
- Open Fuse Indication: Yes, on each pole
- Standards: UL 98 listed, IEC 60947-3 AC-23A
- Mounting: Front panel with customer-supplied M3 screws
- Additional: Compact 19mm wide per pole, designed for load isolation and safety
Buy the Eaton Series CCPLP Fused Disconnect: CCPLP120GP
Discover the Eaton series CCPLP fused disconnect switch, offering a compact and reliable load isolation solution for industrial environments. Rated up to 600VAC and 20A, it features a high short circuit current rating of 100kA, local open fuse indication, and an IP20 finger-safe enclosure for safety assurance. Easy to mount with front panel access, it meets UL 98 and IEC standards, ensuring durability and safety. Perfect for control panels and branch circuit protection needs, buy online today for efficient industrial safety solutions.
Get Eaton CCPLP120GP today—built for industrial safety, compact design, high SCCR, and reliable load protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann CCPLP120GP?
You can click on the BUY or RFQ button to purchase CCPLP120GP from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part CCPLP120GP?
You can download the CCPLP120GP datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of CCPLP120GP?
Eaton Bussmann
