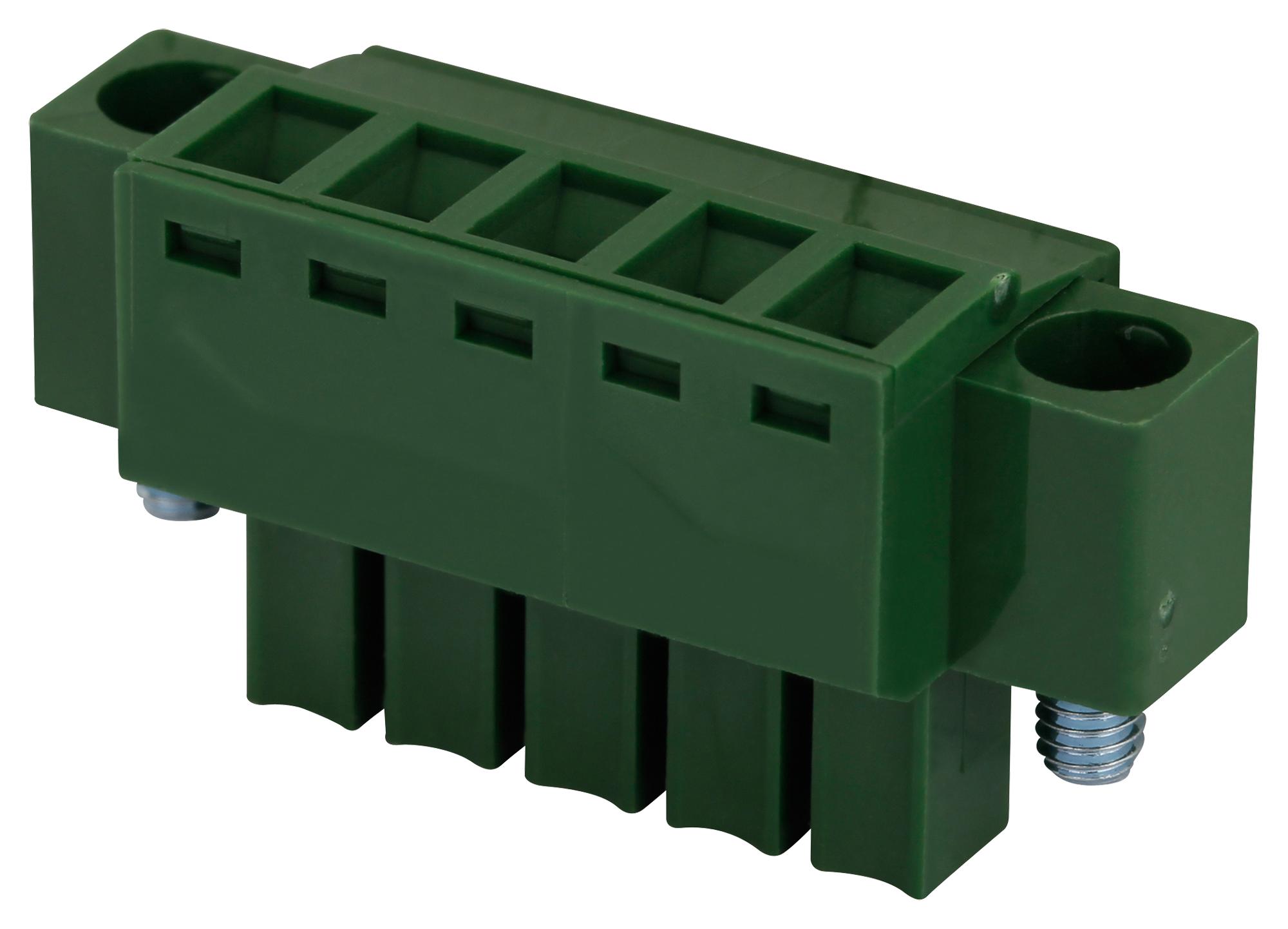

Eaton Bussmann EM242302 PCB Terminal Block
The EuroMag Series PCB Mount Pluggal provides reliable pluggable terminal blocks with a 3.81mm center spacing, rated at 10A and 300V. Made from UL rated 94V0 thermoplastic housing, it features brass tin-plated contacts and nickel-plated brass cage. Suitable for wire ranges #16-26 AWG, it can operate up to 105°C (221°F) with a torque rating of 3.0 Ib-in. The compact design ensures easy connections in control and automation applications, making it ideal for electrical distribution systems requiring secure and versatile connections.
Eaton Bussmann EM242302 PCB Terminal Block Specifications:
- Rating: 10A, 300V
- Center Spacing: 0.15 inches (3.81mm)
- Wire Range: #16-26 AWG
- Housing Material: UL rated 94V0 Thermoplastic
- Contact Material: Brass Tin-Plated
- Cage Material: Brass, Nickel-Plated
- Screw Size: M2.0 Zinc-Plated Steel
- Operating Temperature: -40°C to 105°C (221°F)
- Torque Rating: 3.0 Ib-in
- Construction: Mold-to-Length
- Agency Certification: UL File E62622, CE Certified
- Mating Header: EM2211 series
Buy the Eaton Series EuroMag PCB Mount Pluggal: EM242302
Enhance your electrical projects with the reliable EuroMag PCB Terminal Block. Designed for secure and efficient wire connections, it supports wire ranges from #16 to 26 AWG with a 3.81mm center spacing. Made from UL-rated thermoplastic with brass tin-plated contacts, it offers durable performance up to 105°C. Easy to install and compatible with EM2211 series headers, this terminal block ensures safety and versatility for control systems. Order online today for fast, reliable delivery and seamless integration into your electrical infrastructure.
Buy Eaton EuroMag series EM242302 now and experience unmatched reliability and performance in your electrical connections.
Frequently Asked Questions
Where can I buy Eaton Bussmann EM242302?
You can click on the BUY or RFQ button to purchase EM242302 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part EM242302?
You can download the EM242302 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of EM242302?
Eaton Bussmann
