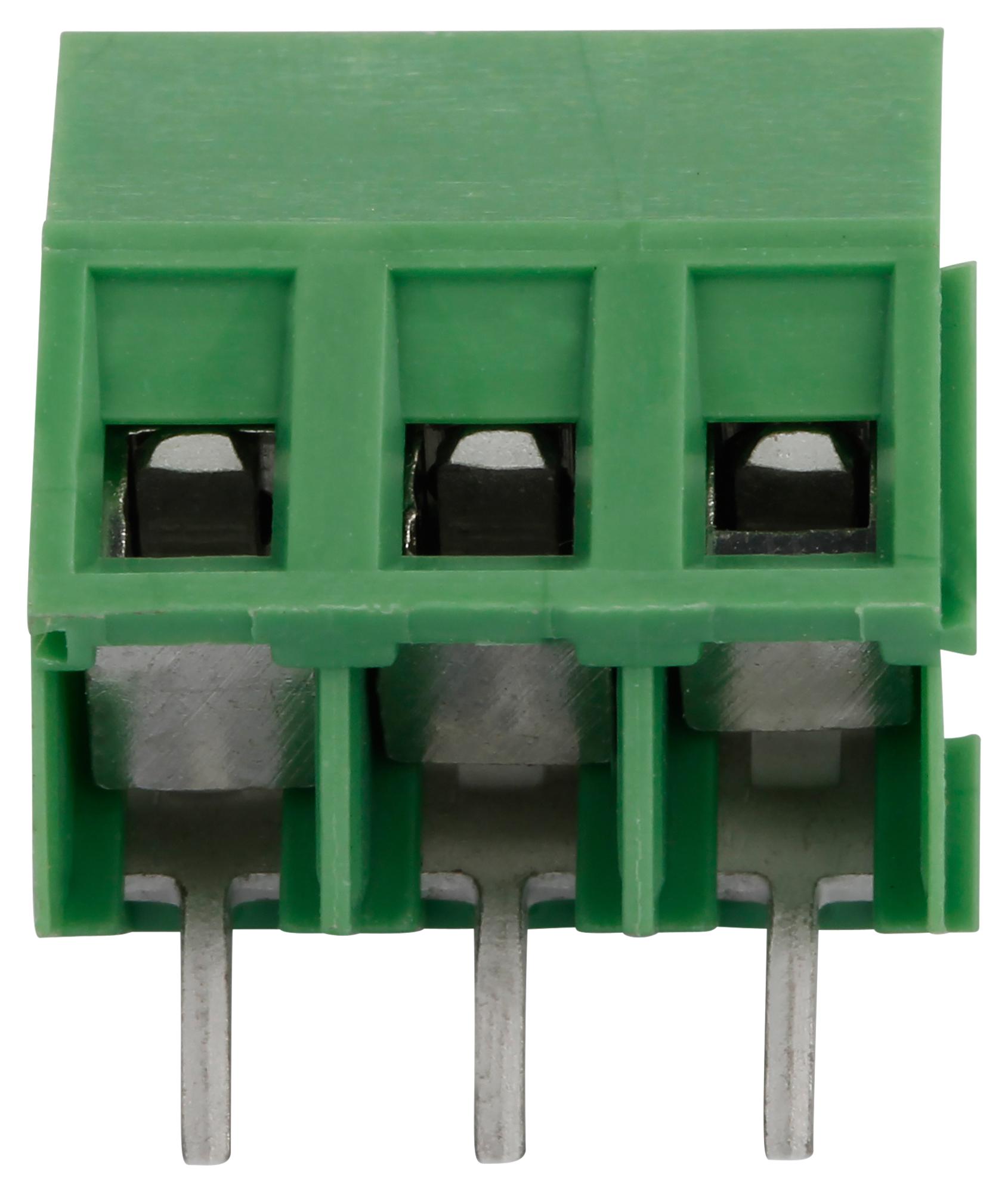

Eaton Bussmann EM322503 PCB Connector
The EuroMag EM322503 PCB connector, part of the EuroMag Series, features a 35° angle design with 5.00mm centers and modular construction for flexible configurations. It supports a wire range of #12-26 AWG, rated for 16A and 300V, making it suitable for various PCB applications. Constructed from UL-rated 94V0 thermoplastic housing and brass tin-plated contacts, it ensures durability and reliable electrical connection. The modular design incorporates dovetails for interlocking, allowing longer length setups for efficient circuit organization. Ideal for industrial and electronic assembly, offering high performance at operating temperatures up to 105°C.
Eaton Bussmann EM322503 PCB Connector Specifications:
- Rating: 16A, 300V
- Center Spacing: 0.197” (5.00mm)
- Wire Range: #12-26 AWG
- Housing Material: UL rated 94V0 Thermoplastic
- Contact Material: Brass Tin-Plated
- Screw Size: M2.6 Zinc-Plated Steel
- Operating Temperature: 105°C (221°F) max., -40°C (-40°F) min.
- Recommended PCB Hole Diameters: 0.055" (1.40mm)
- Construction: Modular with dovetail interlocking
- Torque Rating: 5 Ib-in
Buy the EuroMag Series PCB Connector: EM322503
Purchase the EuroMag Series PCB connector EM322503 online today to ensure reliable electrical connections. Its modular design, 35° angle, and 16A current rating make it perfect for efficient PCB assemblies in industrial electronics. Made of UL-rated thermoplastic housing and brass contacts, it offers durability and superior performance at high temperatures up to 105°C. With a support for wire ranges from #12 to #26 AWG and a recommended PCB hole diameter of 0.055 inches, it provides easy installation and secure connection for complex circuit configurations. Buy online now for fast delivery and expert support.
Buy EuroMag EM322503 now and experience modular flexibility, durable components, and reliable PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy Eaton Bussmann EM322503?
You can click on the BUY or RFQ button to purchase EM322503 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part EM322503?
You can download the EM322503 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of EM322503?
Eaton Bussmann
