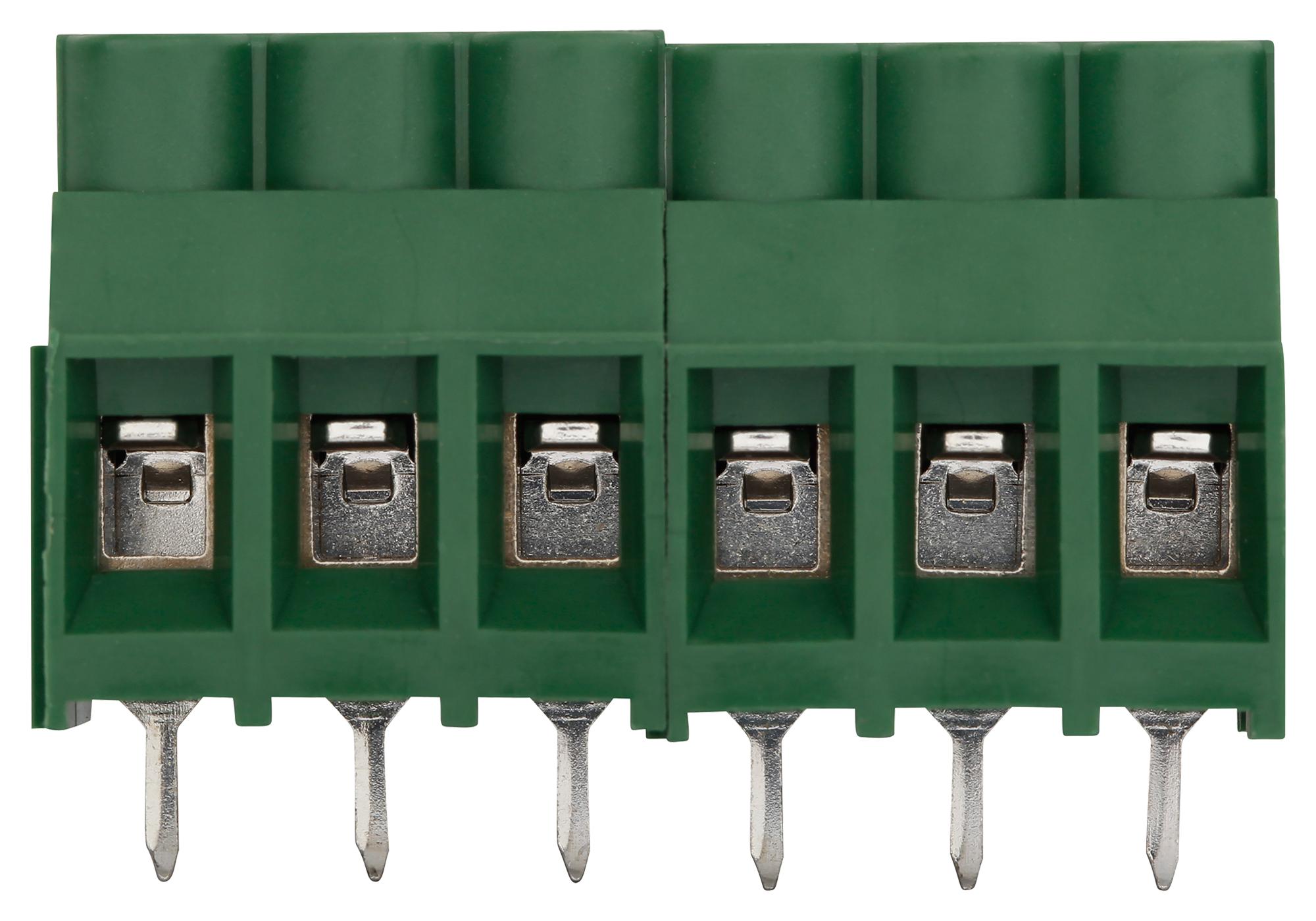

Eaton Bussmann EM912606 Modular Terminal Blocks
EuroMag series terminal blocks feature a modular design with 6.35mm center spacing, supporting wire ranges from #10-24 AWG. Made with UL-rated 94V0 thermoplastic housing, brass tin-plated contacts, and nickel-plated brass cages, these terminal blocks provide reliable electrical connections. Rated for 30A and 300V, they are suitable for industrial wiring applications. The M3.0 zinc-plated steel screws and standard PCB hole sizes ensure easy installation. Operating temperature ranges from -40°C to 105°C, with a torque rating of 5.5 lb-in. They interlock for longer lengths.
Eaton Bussmann EM912606 Modular Terminal Blocks Specifications:
- Rating: 30A, 300V
- Center Spacing: 0.250 inch (6.35mm)
- Wire Range: #10-24 AWG
- Housing Material: UL rated 94V0 Thermoplastic
- Contact Material: Brass, Tin-Plated
- Cage Material: Brass, Nickel-Plated
- Screw Size: M3.0 Zinc-Plated Steel
- Operating Temperature: -40°C to 105°C (221°F)
- Torque Rating: 5.5 lb-in
- Recommended PCB Hole Diameter: 0.071 inch (1.80mm)
- Construction: Modular with dovetail interlocking
- Agency Certifications: UL Listed (E62622), CE Certified
Buy the Eaton EM912606 – Reliable Modular Terminal Blocks for Industrial Applications
Enhance your industrial wiring setup with the Eaton EM912606 Modular Terminal Blocks. Designed for reliable connections, these terminal blocks feature a compact 6.35mm center spacing, supporting wire ranges from #10 to 24 AWG. Constructed with UL-rated thermoplastic housing and brass contacts, they provide excellent durability and electrical performance. Suitable for various industrial environments, these modular blocks interlock seamlessly for custom lengths. Rated at 30A and 300V, they ensure safety and efficiency in control panels and automation systems. Easy to install with zinc-plated M3 screws and standard PCB holes.
Buy Eaton EM912606 now and experience unmatched reliability and performance in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann EM912606?
You can click on the BUY or RFQ button to purchase EM912606 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part EM912606?
You can download the EM912606 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of EM912606?
Eaton Bussmann
