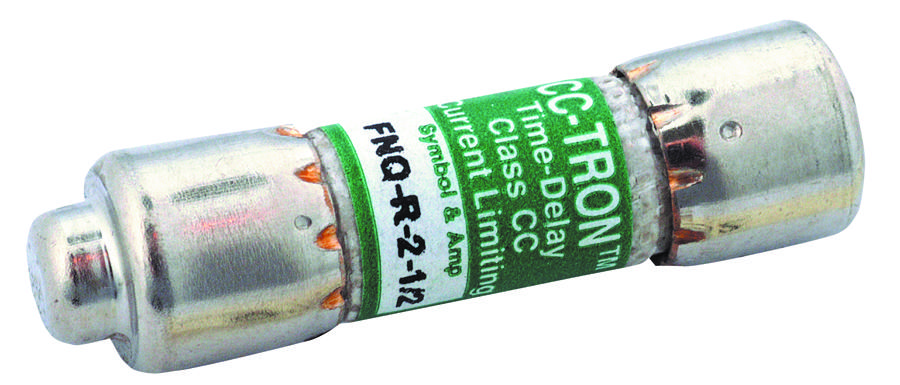

Eaton Bussmann FNQR25 Current-Limiting Fuse
This advanced Class CC time-delay fuse provides reliable overcurrent protection with a 200kA interrupting rating. Designed for 600VAC systems, it features a slow blow characteristic suitable for industrial and commercial applications. The fuse measures 10 x 38 mm with a 5AG midget case, ensuring secure mounting in compatible holders. It is rated for 25 Amps and complies with UL and CSA standards, offering durable, high-capacity protection for branch circuits, transformers, and control panels. It is ideal for safeguarding sensitive control devices and minimizing nuisance tripping while allowing inrush currents.
Eaton Bussmann FNQR25 Current-Limiting Fuse Specifications:
- Voltage Rating: 600Vac
- Current Rating: 25A
- Dimensions: 10 x 38 mm (0.41 x 1.5 inches)
- Case Type: 5AG midget
- Interrupting Rating: 200kA Vac RMS Sym
- Slow Blow, Time-Delay
- Standards: UL Listed, CSA Certified
- Mounting: Compatible with standard fuse holders
- Designed for use in industrial and commercial electrical systems
- Compliance: RoHS
Buy the Eaton Series Limitron FNO-R Fuse: FNQR25
Secure your electrical systems with the Eaton Limitron FNQR25 fuse, rated for 600VAC and 25A. Its slow blow, time-delay design helps prevent nuisance tripping while offering high interrupting capacity of 200kA. Compact and reliable, this 10 x 38 mm fuse fits standard holders and is perfect for protecting branch circuits, control transformers, and industrial control devices. Easy to install, UL and CSA certified, ensuring compliance and safety for your critical electrical applications.
Buy Eaton Limitron FNQR25 now and experience unmatched reliability and performance in industrial overcurrent protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann FNQR25?
You can click on the BUY or RFQ button to purchase FNQR25 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part FNQR25?
You can download the FNQR25 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of FNQR25?
Eaton Bussmann
