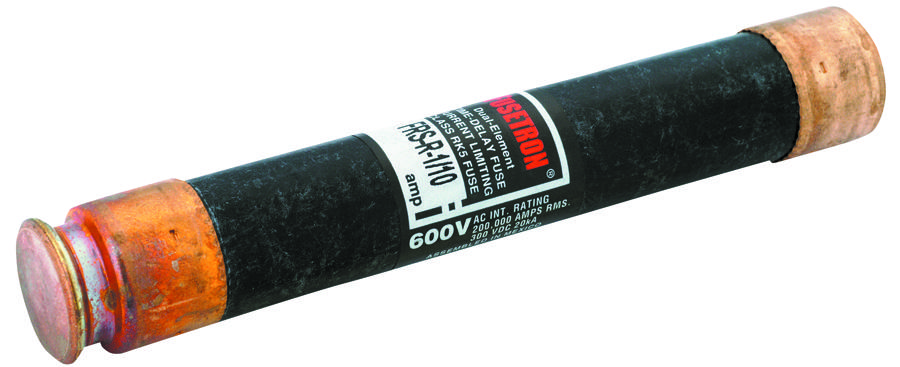

Eaton Bussmann FRSR25 Dual-Element Time-Delay Fuse
The FRS-R-25 is an advanced, energy-efficient dual-element time-delay fuse designed to provide motor overload and single-phasing protection when properly rated. Its dual-element configuration offers superior time-delay performance, enabling closer sizing and enhanced protection for motors and transformers. This results in smaller fuse sizes and reduced costs for switches. Certified as a Class RK5 fuse with a 200kA interrupting rating, it is suitable for a wide range of applications. The fuse can handle temporary motor overloads and surge currents, providing high-performance short-circuit and overload protection. The time-delay feature allows for the use of smaller amp ratings compared to non-time-delay fuses, offering current limitation to protect downstream components from high fault currents and providing backup motor protection without additional expenses.
Eaton Bussmann FRSR25 Dual-Element Time-Delay Fuse Specifications:
- Voltage Rating: 600 Vac, 300 Vdc (1/10-30 A), 600 Vac, 250 Vdc (35-60 A)
- Amp Rating: 1/10-60 A
- Interrupting Rating: 200 kA Vac RMS Sym, 20 kA Vdc
- Features: Dual-element, time-delay, current-limiting, open fuse indication available with suffix ‘ID’
- Dimensions: Length approximately 0.81 to 1.06 inches depending on rating
- Standards: UL Listed Std. 248-12, Class RK5, Guide JDDZ, File E4273; CSA Certified C22.2 No. 248.12, Class 1422-02, File 53787
- Application: Motor overload, ground fault, short-circuit protection, suitable for industrial motor control and transformers
Buy the Bussmann FRS-R-25 – Reliable Motor Overload and Short-Circuit Fuses for Industrial Applications
Purchase Bussmann FRS-R-25 online today to ensure reliable motor overload, ground fault, and short-circuit protection with superior energy-efficient dual-element design. This fuse is certified as a Class RK5 device, offering a high interrupting rating of 200kA. Its advanced features include a 10-second time delay at five times rated current, enabling closer sizing to protect motors and transformers effectively. Ideal for industrial, manufacturing, and plant applications, this fuse ensures safety, reduces costs, and enhances system performance. Shop now for ultimate protection with easy online ordering and fast delivery!
Get Bussmann FRS-R-25 today—built for precision and long-lasting durability in motor control and industrial protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann FRSR25?
You can click on the BUY or RFQ button to purchase FRSR25 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part FRSR25?
You can download the FRSR25 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of FRSR25?
Eaton Bussmann
