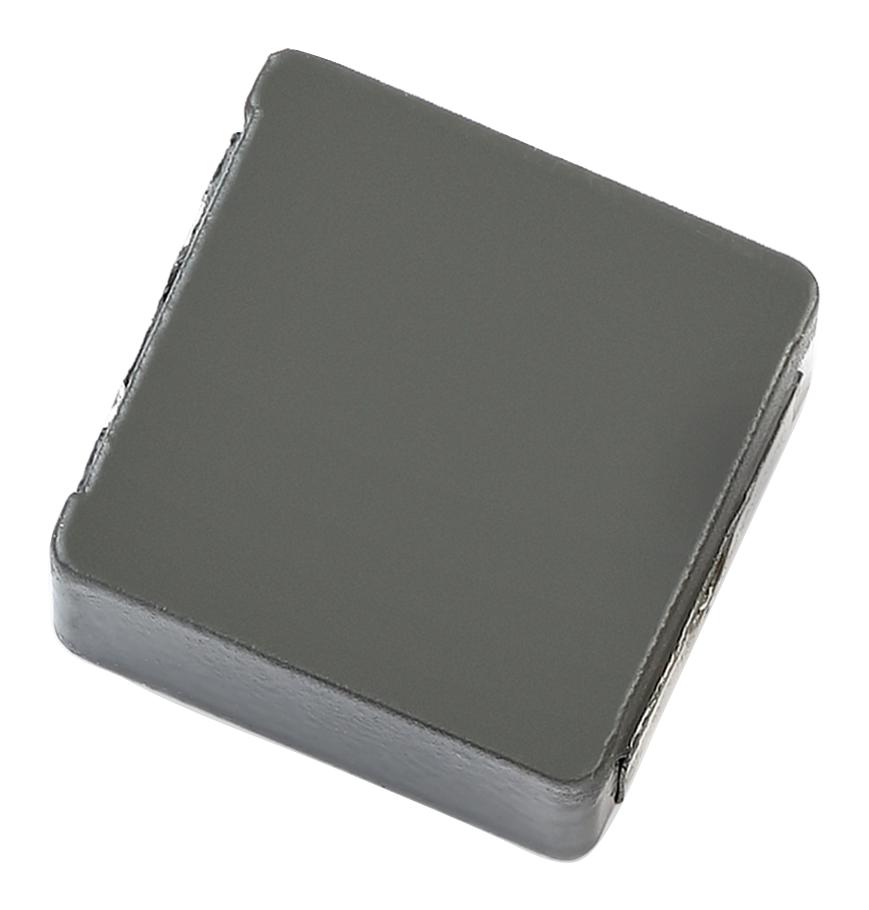

Eaton Bussmann HCM1A1105V2470R High Current Power Inductor
The HCM1A1105V2 is an automotive-grade power inductor designed for high current applications. It features an alloy powder core, magnetically shielded design, and low EMI, making it suitable for DC-DC converters operating up to 1 MHz, filtering up to self-resonant frequency. Its dimensions are 11.2 mm x 10.3 mm x 5.0 mm high, with inductance options from 0.68 pH to 68 pH and current ratings up to 30 A. These inductors are ideal for body electronics, HVAC, lighting, and advanced driver assistance systems, supporting robust performance in demanding automotive environments.
Eaton Bussmann HCM1A1105V2470R High Current Power Inductor Specifications:
- Dimensions: 11.2 mm x 10.3 mm x 5.0 mm height
- Inductance range: 0.68 pH to 68 pH
- Current range: up to 30 A
- Magnetically shielded, low EMI design
- Material: Alloy powder core
- AEC-Q200 qualified for automotive reliability
- Moisture Sensitivity Level: 1
- Operating temperature: -55°C to +155°C
- Storage temperature: -55°C to +155°C
- Solder reflow: Compliant with J-STD-020
- Application: DC-DC converter, filtering, automotive electronics
- Package: Surface mount, 11.2 x 10.3 mm footprint
- Resistance (DCR): Varies with inductance (from 1.55 mΩ to 22.0 mΩ approximately)
Buy the Buy Eaton HCM1A1105V2 Part Number 470R Online
Discover the Eaton high current power inductor, perfect for automotive DC-DC conversions, filtering, and advanced driver assistance systems. With high current ratings up to 30 A, low EMI, and rugged alloy powder core, this inductor guarantees robust performance in harsh automotive environments. Its compact surface mount package (11.2 mm x 10.3 mm x 5.0 mm) makes it ideal for streamlined designs. Certified with AEC-Q200 and Level 1 Moisture Sensitivity, purchase online now for fast delivery and trusted quality in every component.
Order your Eaton Series 470R power inductor today and enhance your automotive electronics with reliable high current inductors for demanding applications.
Frequently Asked Questions
Where can I buy Eaton Bussmann HCM1A1105V2470R?
You can click on the BUY or RFQ button to purchase HCM1A1105V2470R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part HCM1A1105V2470R?
You can download the HCM1A1105V2470R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of HCM1A1105V2470R?
Eaton Bussmann
