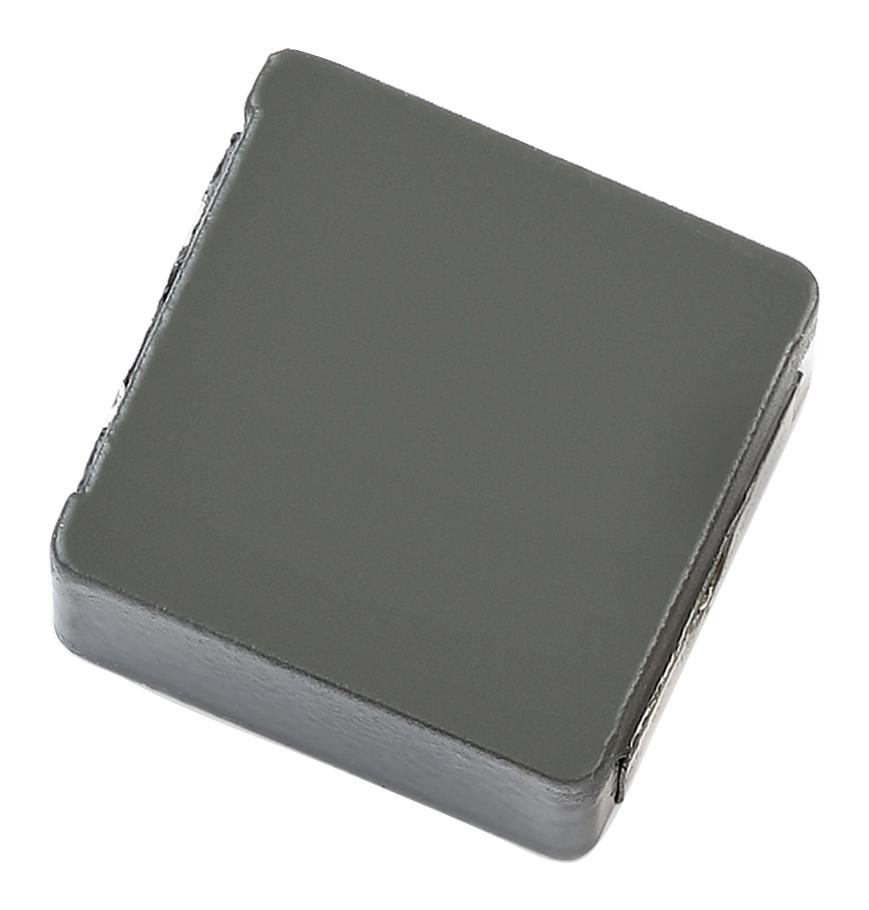

Eaton Bussmann HCM1A1305V22R2R High Current Power Inductor
High current power inductors designed for automotive and industrial applications, with ratings up to 80A current, low EMI, and magnetically shielded construction. Suitable for DC-DC converters up to 1 MHz, filtering up to SRF, and various automotive electronics including body controls, lighting, HVAC, and safety systems. Footprint is 13.8mm x 12.9mm with a maximum height of 5.0mm, and alloy powder core ensures reliable performance in harsh environments. Qualified to AEC-Q200 standards, these inductors enable efficient power management and electromagnetic compatibility in demanding systems.
Eaton Bussmann HCM1A1305V22R2R High Current Power Inductor Specifications:
- Inductance range: 0.10 pH to 33 pH with ±20% tolerance
- Current ratings: 4.5 A to 80 A
- Dimensions: 13.8 mm x 12.9 mm footprint, height 5.0 mm
- Core material: Alloy powder
- Magnetically shielded: Yes
- Suitable for DC-DC converters up to 1 MHz
- Filtering applications up to Self Resonant Frequency (SRF)
- Operating temperature range: -55°C to +155°C
- Storage temperature: -55°C to +155°C
- Moisture Sensitivity Level: MSL 1
- Solder reflow compatible per J-STD-020
Buy the Eaton HCM1A1305V2 – Reliable Power Inductor for Automotive and Industrial Applications
Discover Eaton high current power inductors designed for automotive and industrial applications. With ratings up to 80A, compact footprint, low EMI, and qualified to AEC-Q200 standards, these inductors ensure efficient power management and electromagnetic compatibility. Ideal for DC-DC converters, filtering, and safety systems. Their alloy powder core and magnetically shielded construction provide reliable operation in harsh environments. Purchase online today and optimize your system's performance with Eaton's trusted inductors, ensuring durability and high efficiency in your critical projects.
Buy Eaton HCM1A1305V2 high current power inductor now and experience unmatched reliability and performance in demanding automotive and industrial systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann HCM1A1305V22R2R?
You can click on the BUY or RFQ button to purchase HCM1A1305V22R2R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part HCM1A1305V22R2R?
You can download the HCM1A1305V22R2R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of HCM1A1305V22R2R?
Eaton Bussmann
