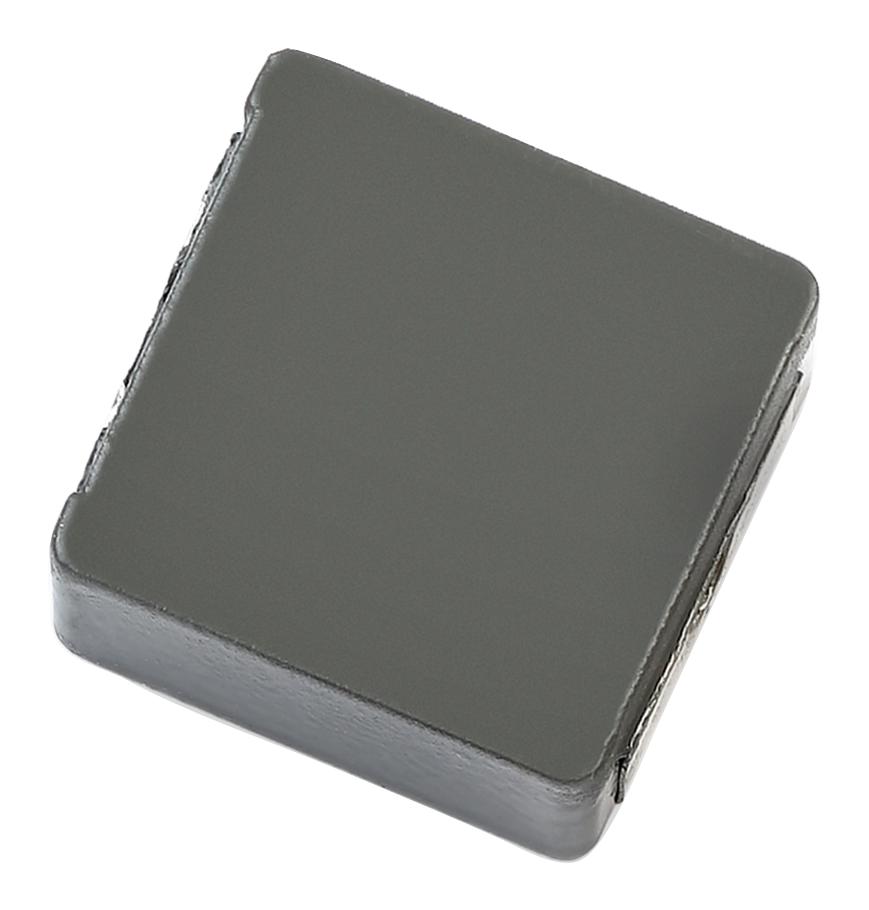

Eaton Bussmann HCM1A1307V2330R High Current Power Inductor
These high current automotive-grade power inductors are magnetically shielded, designed for efficient filtering and power management in automotive electronics. Qualified to AEC-Q200 standards, they support high power applications such as DC-DC converters up to 1 MHz, lighting systems, HVAC controls, and advanced driver assistance systems. With inductance values from 0.22 μH to 56 μH, current ratings up to 100A, and compact surface-mount design, they ensure low EMI and reliable operation in harsh environments. Perfect for body electronics, engine control units, and safety systems, these inductors meet rigorous automotive industry demands for durability and performance.
Eaton Bussmann HCM1A1307V2330R High Current Power Inductor Specifications:
- Inductance Range: 0.22 μH to 56 μH
- Current Range: Up to 100A
- Footprint: 13.8 mm x 12.9 mm surface mount package
- Height: 6.5 mm
- Material: Alloy powder core
- Qualification: AEC-Q200 qualified
- Temperature Range (Operating): -55°C to +155°C
- Temperature Range (Storage): -55°C to +155°C
- Moisture Sensitivity Level: MSL 1
- DC Resistance (DCR): Varies by inductance value; typical DCR from 0.14 mΩ to 35.8 mΩ
- Self Resonant Frequency (SRF): 23 MHz to 244 MHz depending on model
- Application: Automotive electronics, power modules, lighting, HVAC, safety systems
- Solder Reflow Profile: Compliant with J-STD-020 standards
- Packaging: Tape and reel, 250 parts per reel
Buy the Buy Eaton HCM1A1307V2 Part Number 330R Online
Purchase the Eaton HCM1A1307V2-330-R high current power inductor easily online to ensure reliable power filtering in automotive systems. Designed for demanding applications with up to 100A current capacity, this magnetically shielded surface-mount component offers excellent performance, low EMI, and durability in harsh environments. Perfect for DC-DC converters, engine control modules, lighting, HVAC, and safety electronics, it complies with industry standards and features a compact footprint for space-saving designs. Secure your supply of high-quality inductors now for automotive and industrial electrical systems, delivering long-lasting efficiency and reliability.
Get Eaton HCM1A1307V2-330-R today—built for high current capacity and automotive reliability.
Frequently Asked Questions
Where can I buy Eaton Bussmann HCM1A1307V2330R?
You can click on the BUY or RFQ button to purchase HCM1A1307V2330R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part HCM1A1307V2330R?
You can download the HCM1A1307V2330R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of HCM1A1307V2330R?
Eaton Bussmann
