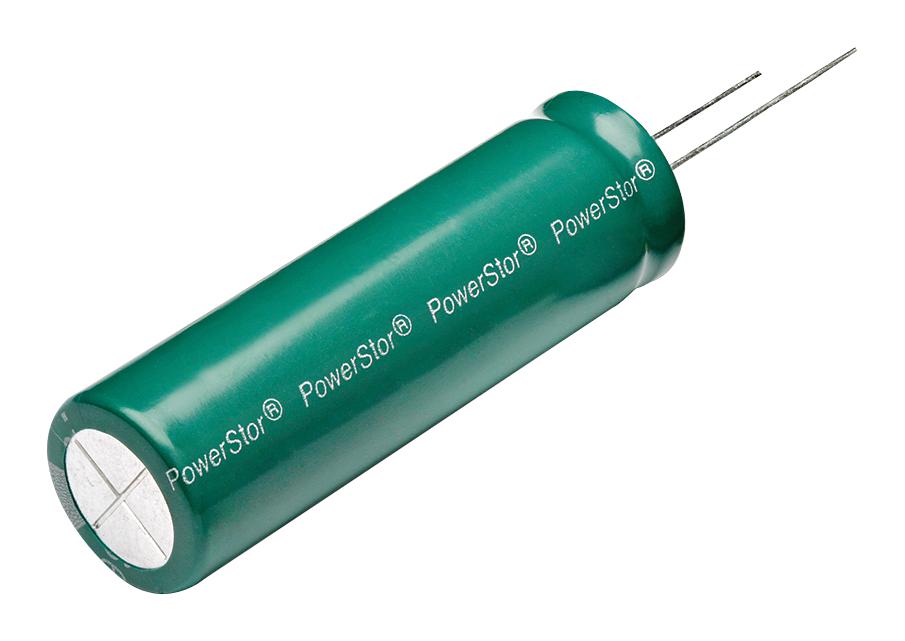

Eaton Bussmann HV10302R7106R Supercapacitor Cylindrical Cell
Eaton HV supercapacitors are high-reliability, ultra-high capacitance energy storage devices with low ESR for high power density, suitable for backup power, pulse power, and hybrid systems. They operate from -40°C to +85°C, have a lifespan of up to 20 years, and are environmentally friendly. Designed as cylindrical cells, they feature a maximum voltage of 27V, capacitance from 1.0F to 100F, and are used in smart meters, controllers, RF radio power, solar capture, and storage servers. Their robust construction ensures optimal performance in demanding applications.
Eaton Bussmann HV10302R7106R Supercapacitor Cylindrical Cell Specifications:
- Capacitance: 1.0 F to 100 F
- Maximum working voltage: 27 V
- Surge voltage: 30 V
- Operating temperature range: -40 °C to +65 °C
- Extended temperature range: -40 °C to +85 °C with voltage derating to 2.3 V at 85 °C
- Material: Electrochemical double layer capacitor construction with environmentally friendly materials
- Design lifetime: Up to 20 years
- Dimensions: Diameter varies from 8 mm to 18.5 mm, length from 13.5 mm to 60.5 mm
- Features: Ultra low ESR, UL recognized, maintenance-free, high power density
Buy the Eaton HV Supercapacitors 10302R7106R – Reliable Energy Storage for Industrial Applications
Purchase the Eaton HV supercapacitor 10302R7106R online today for robust energy storage with high capacitance, low ESR, and excellent temperature performance. These cylindrical cells are ideal for backup power, pulse applications, and hybrid systems, offering a design life of up to 20 years. They feature environmentally friendly materials, UL recognition, and operate across a broad temperature range, ensuring reliability and safety in demanding environments. Order now to integrate high-performance supercapacitors into your projects seamlessly and securely.
Order your Eaton HV series supercapacitor 10302R7106R today and enhance your energy storage systems with dependable, long-lasting power solutions.
Frequently Asked Questions
Where can I buy Eaton Bussmann HV10302R7106R?
You can click on the BUY or RFQ button to purchase HV10302R7106R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part HV10302R7106R?
You can download the HV10302R7106R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of HV10302R7106R?
Eaton Bussmann
