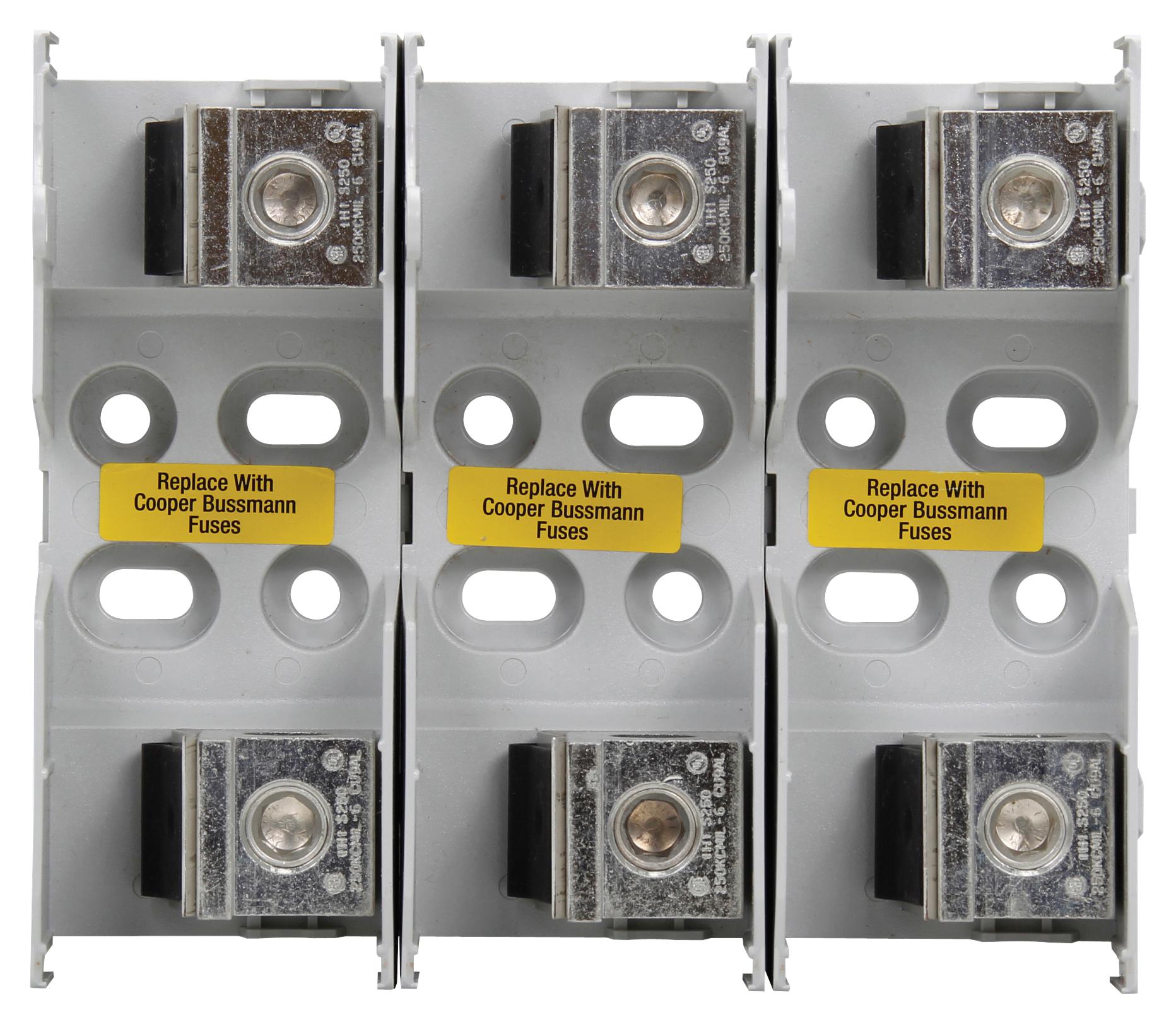

Eaton Bussmann JM602003CR Knife-Block Fuse
The product is a modular, high-current knife-blade fuse block designed for industrial power distribution. It features snap-together assembly, safety covers, and optional blown fuse indication. Rated for 200-600A, it complies with UL and CSA standards, with temperature ratings from -40°C to 120°C. Made with copper or aluminum wire terminals, it ensures reliable electrical connections with reinforced springs, phase barriers, lockout/tagsafety features, and optional finger-safe covers. Suitable for applications requiring flexible mounting and easy maintenance, including high-current industrial power circuits and distribution systems.
Eaton Bussmann JM602003CR Knife-Block Fuse Specifications:
- Voltage Ratings: 250V or 600V, depending on model
- Current Ratings: 200A, 250A, 400A, 600A
- Material: Copper or aluminum wire terminals, tin-plated
- Temperature Range: -40°C to 120°C
- UL and CSA Listed: UL 508, UL 845, UL 98, UL 67, UL 489, UL 891, UL 869A, CSA Certified 47235-6225-01
- Blown Fuse Indication: Requires 90V minimum and closed circuit
- Enclosure: Self-extinguishing UL 94V0 rating (blocks), UL 94HB (covers)
- Number of Poles: 1 to 3, with modular configurations for flexible installation
- Safety Features: Built-in lockout/tagout, phase barriers, finger-safe covers
- Connection Terminals: Tin-plated aluminum, copper/aluminum wire ranges based on amperage
- Environmental Conditions: For indoor use, operating temperature from -40°C to 120°C
- Standards Compliance: UL 94V0, UL 94HB, UL 508, UL 845, UL 98, UL 67, UL 489, UL 891, UL 869A
- Installation: Multiple mounting holes, integral dovetails for point-of-use assembly
- Additional Features: Test probe holes, see-through covers, optional blown fuse indication, high-clarity safety covers
Buy the Buy Eaton Knifeblade Fuse Block Part Number JM602003CR Online
Purchase your Eaton Knife-Block Fuse JM602003CR online today for a high-quality, reliable circuit protection solution suitable for industrial power systems. Engineered to meet UL and CSA standards, it features modular design for easy assembly, safety covers, and optional blown fuse indication. Rated for 200-600A, with temperature ratings from -40°C to 120°C, it offers dependable electrical connections with reinforced springs and phase barriers. Ideal for industrial environments requiring flexible installation, easy maintenance, and enhanced safety features, ensuring your power distribution operates safely and efficiently.
Order your Eaton SeriesJM602003CR high-current fuse block today and ensure reliable, safe power distribution for your industrial applications.
Frequently Asked Questions
Where can I buy Eaton Bussmann JM602003CR?
You can click on the BUY or RFQ button to purchase JM602003CR from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part JM602003CR?
You can download the JM602003CR datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of JM602003CR?
Eaton Bussmann
