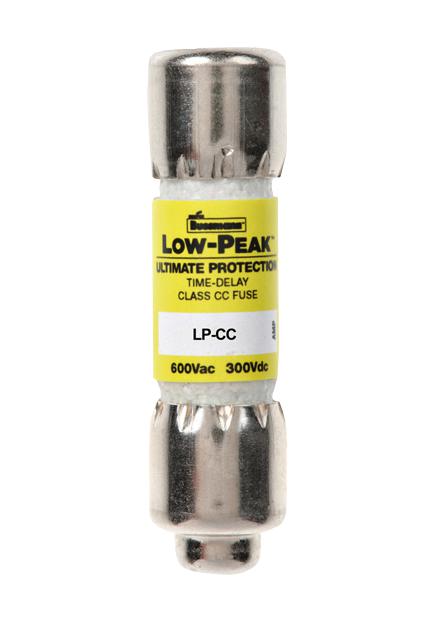

Eaton Bussmann LPCC7 Time-Delay Industrial Fuse
The Low-Peak LP-CC class CC fuses are compact, current-limiting, time-delay devices rated at 600 Vac and 300 Vdc, designed for industrial motor and control circuits. They feature a fast short-circuit response and high interrupting ratings up to 200 kA, ensuring reliable protection against surges and faults. These versatile fuses include dual-element, time-delay operation, making them suitable for protecting small horsepower motors, electrical panels, and sensitive equipment. Their space-saving design simplifies installation, reduces inventory, and improves system safety and efficiency. Compliant with UL, CSA, CE, RoHS standards, they meet the needs of modern electrical systems.
Eaton Bussmann LPCC7 Time-Delay Industrial Fuse Specifications:
- Voltage Rating: 600 Vac, 300 Vdc (1/2 to 2-8/10 A, 20-30 A), 150 Vdc (3-15 A)
- Current Rating: 1/2-30 A
- Interrupting Rating: 200 kA Vac RMS Sym., 20 kA Vdc
- Agency Certifications: UL Listed Class CC, CSA Certified, CE, RoHS compliant
- Dimensions: 13/32 inch x 1-1/2 inch (10 mm x 38 mm)
- Features: Time-delay, current-limiting, space-saving, dual-element design, high surge withstand capability
- Application: Suitable for motor protection, control circuits, surge suppression, compact installations
- Physical Size: Very compact, ideal for panel mounting and limited space conditions
- Standards Compliance: UL 248-4, CSA 1422-02, RoHS, CE
Buy the Eaton LP-CC – Reliable Time-Delay Fuses for Industrial Applications
Secure your electrical systems with Eaton LP-CC time-delay fuses, offering exceptional surge protection and current limitation. Their compact design reduces clutter and simplifies installation, while high interrupting ratings ensure safety during faults. Perfect for motor circuits, control panels, and sensitive equipment, these fuses meet UL, CSA, and RoHS standards for quality and reliability. Whether upgrading or installing new systems, choosing Eaton LP-CC fuses guarantees optimal protection, longevity, and cost savings through reduced inventory and enhanced performance in demanding industrial environments.
Buy Eaton LP-CC fuses now and ensure reliable, space-efficient protection for your industrial circuits and motor control systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann LPCC7?
You can click on the BUY or RFQ button to purchase LPCC7 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part LPCC7?
You can download the LPCC7 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of LPCC7?
Eaton Bussmann
