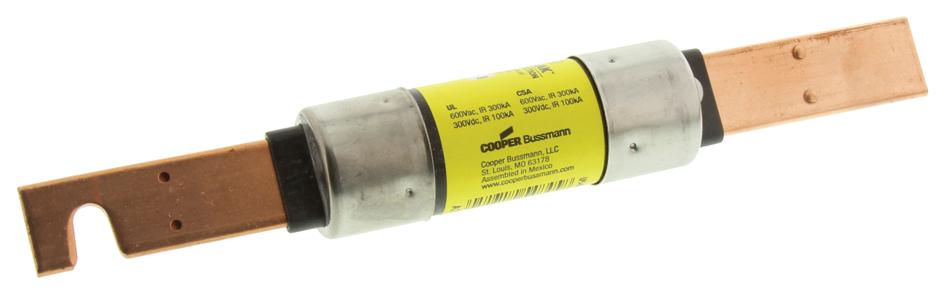

Eaton Bussmann LPSRK100SP Current-Limiting Fuse
The Bussmann by Eaton LPS-RK-100SP is a 600VAC/300VDC, 100A dual element, time-delay fuse designed for comprehensive circuit protection. It features Class RK1 current-limiting technology, is UL-listed and CSA-certified, with a 300kA voltage interrupting rating suitable for a wide range of industrial applications. Its time-delay characteristic, with a minimum of 10 seconds at 500% of rated current, allows for high inrush currents in motor and transformer circuits. The fuse provides effective short-circuit protection, reduces arc flash hazards, and offers easy selective coordination with other low-peak fuses using a simple 2:1 ampacity ratio. It is suitable for feeders, branch circuits, motors, transformers, solenoids, and general-purpose circuits. Additional safety features include electrically isolated end caps and low watt loss power consumption.
Eaton Bussmann LPSRK100SP Current-Limiting Fuse Specifications:
- Volts: 600Vac, 300Vdc
- Amps: 100A
- IR: 300kA Vac RMS Sym., 100kA Vdc
- Time-Delay: Minimum 10 seconds at 500% of rated current
- Dimensions: In inches: 7.88 (for 70-100A), 9.63 (110-200A), 11.63 (225-400A), 13.38 (450-600A); Width varies with amp rating
- Agency Certifications: UL Listed, CSA Certified, Guide JDDZ, File E4273, Class 1422-02, File 53787
- Interrupting Rating: 300kA Vac, exceeds industry requirements
- Features: Class RK1, current-limiting, time-delay, electrically isolated end caps, easy selective coordination, low watt loss
- Application: Feeder circuits, branch circuits, motors, transformers, solenoids, general-purpose circuits
- Construction: Dual element, open fuse indication (with suffix), easy installation
Buy the Eaton Series LPS-RK Circuit Protection: LPSRK100SP
Purchase the Eaton LPSRK100SP fuse online today to ensure reliable protection for your industrial circuits. Designed with dual element, time-delay technology, it offers high interrupting ratings and is suitable for motor, transformer, and general circuit applications. Its UL and CSA certifications guarantee safety and compliance. Easy to install, this fuse provides effective short-circuit protection, reduces arc flash hazards, and offers selective coordination to prevent unnecessary outages. Get yours now for peace of mind and optimal circuit safety.
Buy Eaton LPSRK100SP fuse now and enjoy superior short-circuit protection with excellent inrush current handling and safety features.
Frequently Asked Questions
Where can I buy Eaton Bussmann LPSRK100SP?
You can click on the BUY or RFQ button to purchase LPSRK100SP from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part LPSRK100SP?
You can download the LPSRK100SP datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of LPSRK100SP?
Eaton Bussmann
