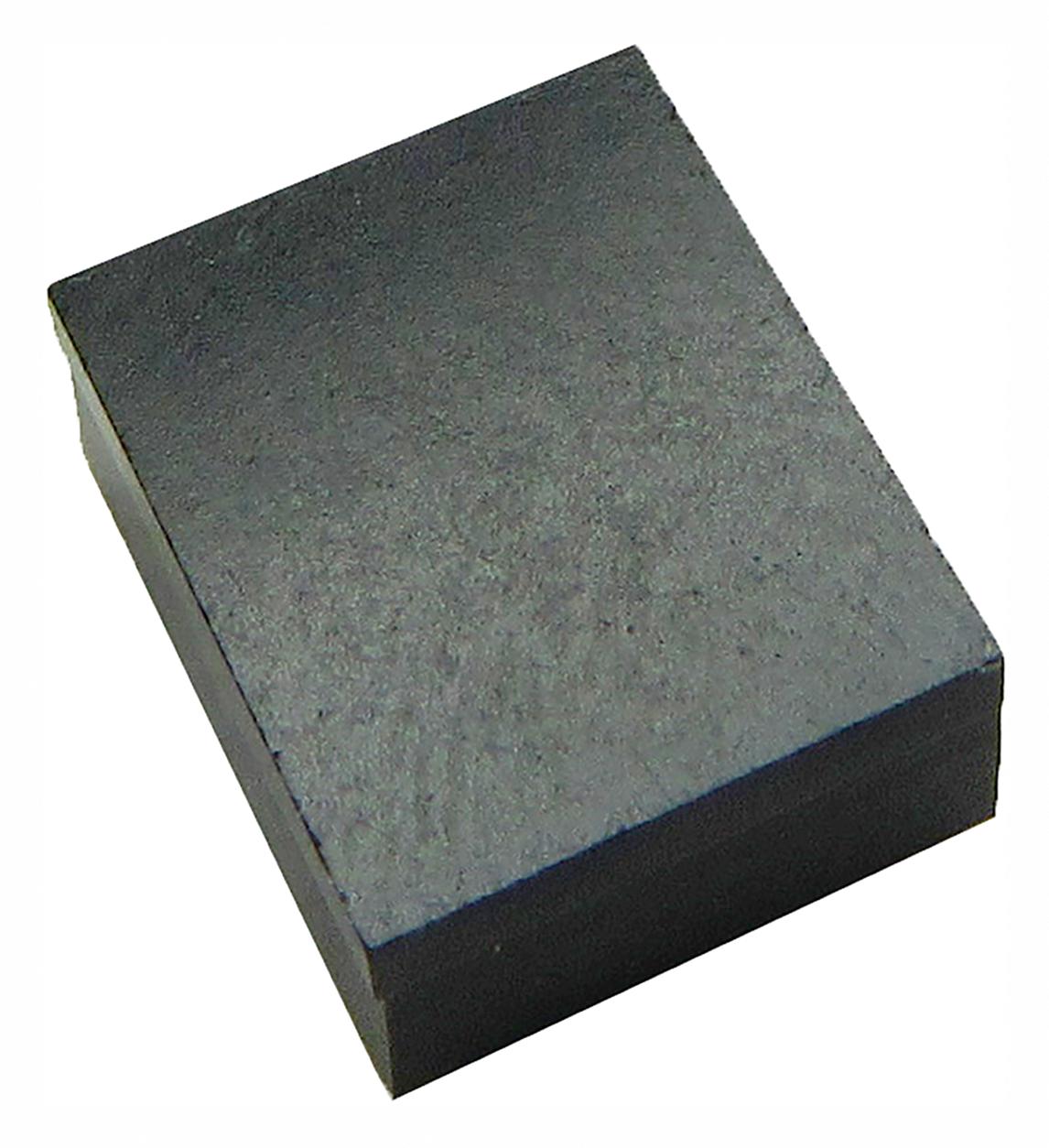

Eaton Bussmann MOVS4032V120 Surface Mount Metal Oxide Varistor
The MOVS4032 series surface-mount Metal Oxide Varistor (MOV) is designed for use in power supply, home appliances, industrial equipment, telecommunications, telephone systems, vacuum-driven devices, and COB LED lighting applications. It features a 4032 (10182 metric) package size, high transient current capability, and is housed in a plastic package that complies with UL 94 V-0 standards. The device also meets UL1449 4th edition requirements, is cURus recognized (file: E340782, guide VZCA2 and VZCA8), and operates effectively within a temperature range from -40°C to +85°C.
Eaton Bussmann MOVS4032V120 Surface Mount Metal Oxide Varistor Specifications:
- Package Size: 4032 (10182 metric)
- Operating Temperature: -40°C to +85°C
- Flammability: UL 94 V-0
- Maximum Working Voltage: 120 V
- Maximum Peak Voltage (8/20 µs waveform): 207 V
- Maximum Peak Current (8/20 µs waveform): 300 A
- Solderability: +245°C ± 5°C, 3 ± 1 seconds
- Solder Leach Resistance: +260°C ± 5°C, 10 ± 1 seconds
- Dimensions: Ww 82 ± 0.2 mm, L 10.1 ± 0.2 mm, T 3.2 mm
- Environmental Compliance: Meets UL 1449 4th edition
- Moisture Sensitivity Level (MSL): 1
- Housing Material: Plastic, UL 94 V-0 rated
- Certified Recognitions: cURus
Buy the Buy Eaton MOVS4032V120 Part Number MOVS4032V120 Online
Order the Eaton MOVS4032V120 online today and benefit from high reliability and surge protection for your power supplies, industrial equipment, and lighting systems. With UL 94 V-0 compliance, UL1449 4th edition adherence, and high transient current capability, this compact surface-mount varistor offers excellent performance in demanding environments. Its robust plastic housing and broad temperature range from -40°C to +85°C ensure long-term durability. Purchase now for optimal surge suppression and peace of mind in your electrical systems.
Buy Eaton MOVS4032V120 now and ensure reliable surge protection in your power and lighting systems with high transient current capacity.
Frequently Asked Questions
Where can I buy Eaton Bussmann MOVS4032V120?
You can click on the BUY or RFQ button to purchase MOVS4032V120 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part MOVS4032V120?
You can download the MOVS4032V120 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of MOVS4032V120?
Eaton Bussmann
