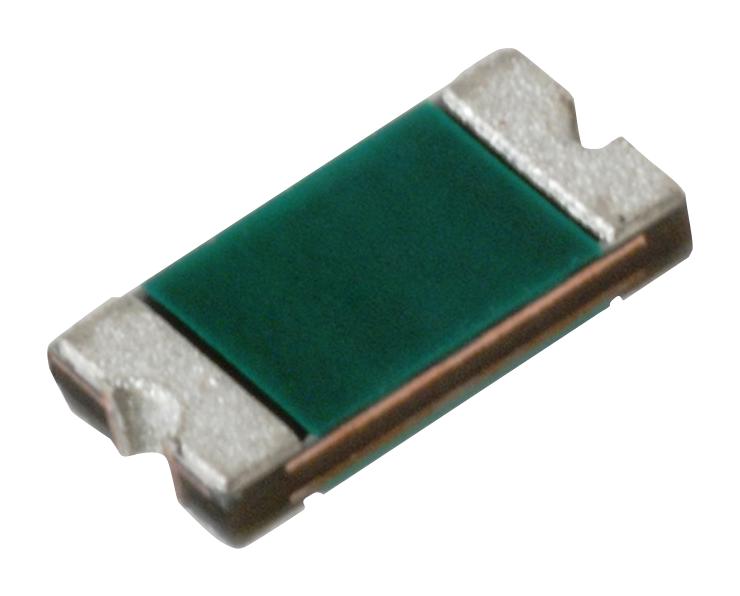

Eaton Bussmann PTS120616V035 Resettable PTC Protector
The PTS1206 series is a compact surface mount resettable PTC device designed for overcurrent protection in electronic circuits. It features a positive temperature coefficient, low resistance, and fast trip time, making it suitable for protecting USB peripherals, consumer electronics, battery packs, and white goods. With a rugged design compliant with RoHS, halogen-free, and lead-free standards, this device ensures reliable performance in a wide voltage range from 6V to 60V DC, providing surge current protection while maintaining minimal resistance during normal operation.
Eaton Bussmann PTS120616V035 Resettable PTC Protector Specifications:
- Maximum voltage (Vmax): 60V DC
- Current range: 0.05A to 2.0A
- Trip time: Fast response at maximum load
- Resistance: Low resistance during normal operation
- Size: 1206 (3216 metric)
- Operating temperature: -40°C to +85°C (with derating)
- Storage temperature: -10°C to +40°C
- Storage humidity: 75% relative humidity
- Compliance: RoHS, halogen free, lead free
- Solder Reflow Profile: Max Ramp Up Rate 3°C/s, Max Ramp Down Rate 6°C/s
- Package: Tape and reel; 2500 or 5000 pieces per reel
- Agency certifications: cURus (E343021), TUV (R50192872)
Buy the Bussmann Series PTS1206: 6-60V DC Resettable PTC Device
Purchase Bussmann PTS1206 resettable PTC device online today for reliable overcurrent protection in a compact design. Ideal for safeguarding USB peripherals, consumer electronics, batteries, and power supplies with fast response, low resistance, and RoHS compliance. This surface mount device features a 1206 footprint, withstands voltages up to 60V DC, and offers current ratings from 0.05A to 2.0A. Secure your electronic circuits with a proven, environmentally friendly protection solution—order now for quick delivery and excellent performance.
Get Bussmann PTS1206 today—built for circuit protection and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTS120616V035?
You can click on the BUY or RFQ button to purchase PTS120616V035 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTS120616V035?
You can download the PTS120616V035 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTS120616V035?
Eaton Bussmann
