Eaton Bussmann PTS181216V035 Resettable PTC Device
The PTS181216V035 is a surface-mount resettable Polymeric Positive Temperature Coefficient (PTC) device designed for low voltage applications between 6 and 60V DC. It features a compact 1812 footprint, low resistance, and fast trip time, providing reliable overcurrent protection for USB peripherals, consumer electronics, and power supplies. Its halogen-free and RoHS compliant construction makes it ideal for environmentally conscious designs. This device ensures safe operation by limiting current surges, preventing damage to connected components, and supporting various electronic applications with quick reset capabilities after fault conditions.
Eaton Bussmann PTS181216V035 Resettable PTC Device Specifications:
- Voltage Range: 6-60V DC
- Part Number: PTS181216V035
- Resistance: 0.35 ohms at 23°C
- Trip Current: 0.70A
- Maximum Vmax: 16V
- Ihold: 0.35A
- Itrip: 0.70A
- Resistance Post-Trip: 0.32 ohms
- Temperature Range: -40°C to +85°C (with derating)
- Pad Layout: 0.28-0.68mm
- Dimensions: 3.07mm x 1.55mm
- Compliance: RoHS, Halogen-free
- Packaging: Tape and reel, 2000 parts per reel
- Application: USB peripherals, consumer electronics, power tools, mobile device protection
- Environmental Resistance: Resistant to humidity, solvents, and thermal shock
- Soldering Profile: Max ramp-up 3°C/sec, max ramp-down 6°C/sec
- Standards: Meets UL, TUV recognition requirements

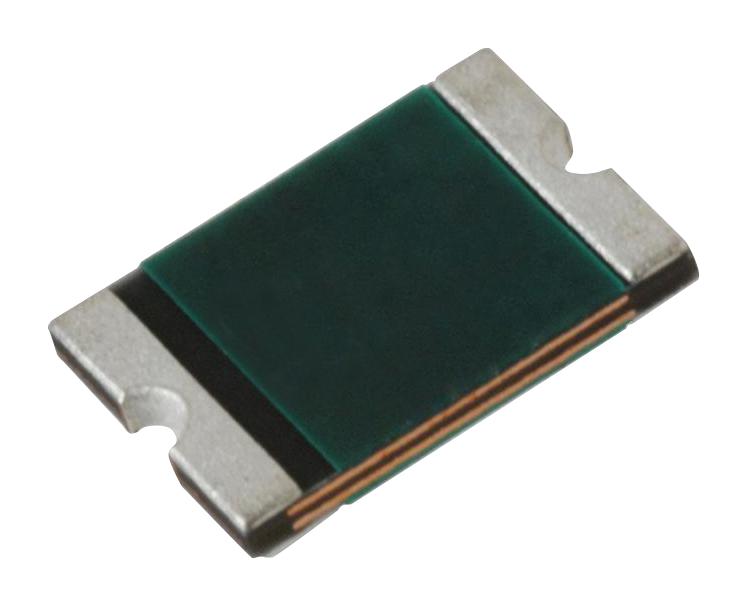

Buy the Buy Eaton PTS181216V035 Part Number 16V DC Surface Mount Resettable PTC Online
Discover the Eaton PTS181216V035 resettable PTC for 6-60V DC applications, offering quick trip times and low resistance. This compact, RoHS-compliant component is perfect for safeguarding USB peripherals, consumer electronics, power tools, and mobile devices. Its reliable resettable technology helps prevent damage from current surges, ensuring long-term device safety. Easily sourced online, this device supports robust, environmentally friendly electronic designs. Upgrade your protection solutions conveniently with Eaton’s high-quality PTC devices, backed by industry standards and environmental compliance for professional electronic applications.
Order your Eaton PTS181216V035 series low voltage resettable PTC today and ensure reliable overcurrent protection for your electronic projects.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTS181216V035?
You can click on the BUY or RFQ button to purchase PTS181216V035 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTS181216V035?
You can download the PTS181216V035 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTS181216V035?
Eaton Bussmann
