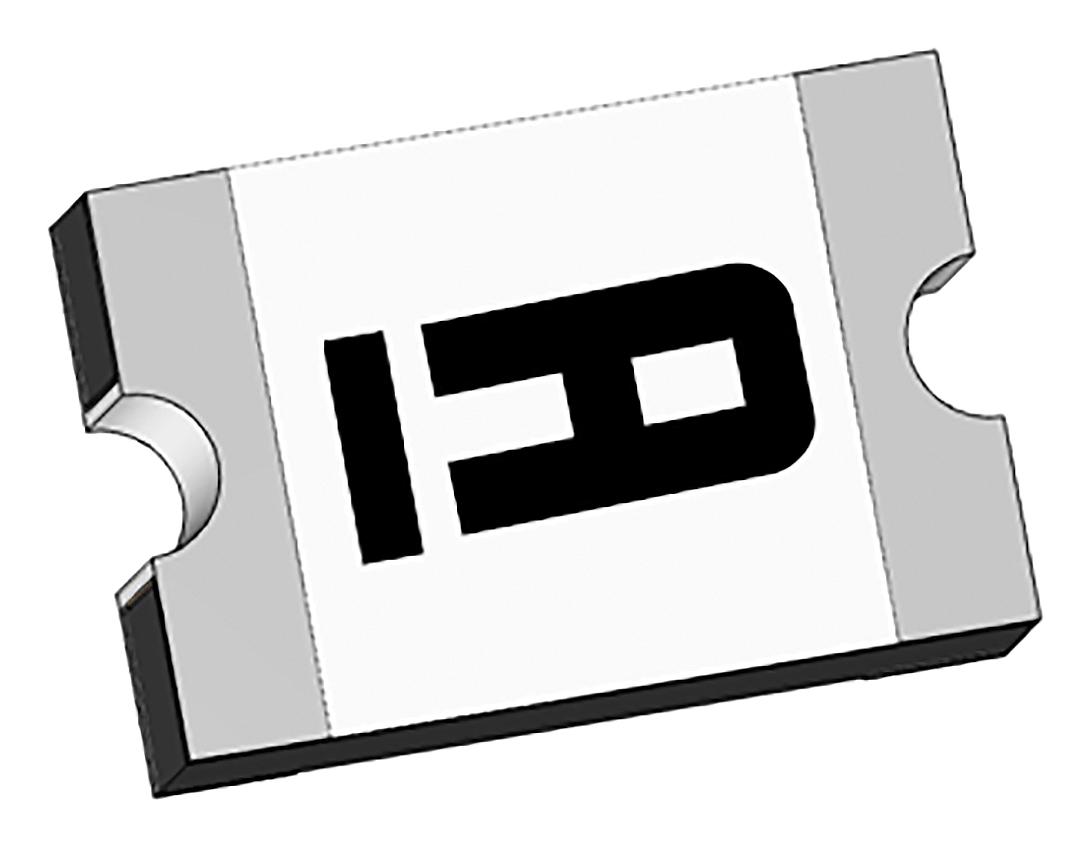

Eaton Bussmann PTSLR08056V175 Low resistance PTC fuse
The PTSLR08056V175 is a surface-mount low resistance SMD PTC fuse designed for protective applications in electronic devices. With a maximum voltage of 6 V and an Ihold rating of 1.75 A, it offers fast trip response and reliable circuit protection for micromotors, fans, medical equipment, USB protection, and battery charging systems. It features UL and TUV safety approvals, a compact 0805 footprint, and excellent resistance and endurance characteristics, ensuring durability in demanding environments and high performance in miniaturized circuit designs.
Eaton Bussmann PTSLR08056V175 Low resistance PTC fuse Specifications:
- Maximum voltage: 6 V
- Hold current: 1.75 A
- Maximum fault current: 3.50 A
- Resistance (post trip): 0.055 Ω
- Resistance (initial): 0.005 Ω
- Trip time: 1000 hours at Vmax and Itrip
- Temperature rating: -40°C to +85°C (derating applies)
- Storage temperature: -10°C to +40°C
- Dimensions: 2.0 mm x 1.25 mm x 0.8 mm (0805 footprint)
- Safety certifications: UL Recognized, TUV Approved
- Solder profile: SNPb and lead-free compatible, peak temp ~260°C
- Humidity: <75%, life and humidity aging tests compliant
- Package: Tape and reel, 4000 parts per reel
Buy the Eaton PTSLR08056V175 – Reliable Circuit Protection for Industrial Applications
Secure your electronic systems with Eaton’s low resistance PTC fuse. Designed for compact protection, it features UL and TUV approvals, fast trip times, and durable construction. Ideal for medical devices, USB protection, battery charging, and automation systems. With a 6-volt maximum rating and 1.75A current limit, it ensures safety and reliability in demanding applications. Efficient for surface-mount designs, it’s your go-to solution for effective circuit safeguarding and long-lasting performance. Order online to upgrade your device protection today.
Buy Eaton PTSLR08056V175 now and experience unmatched reliability and performance in circuit protection and miniaturized electronic systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR08056V175?
You can click on the BUY or RFQ button to purchase PTSLR08056V175 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR08056V175?
You can download the PTSLR08056V175 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR08056V175?
Eaton Bussmann
