Eaton Bussmann PTSLR12066V260 Low Resistance PTC Fuse
The low resistance surface mount PTC fuse from Eaton's Series ETnP LO offers a compact 1206 footprint with a maximum voltage of 6 V and current ratings from 0.75 A to 5.00 A. It features positive temperature coefficient properties for resettable protection, ideal for applications such as data ports, motor protection, low voltage test equipment, medical devices, USB protection, and battery charging connections. Its reliable design ensures fast trip times, low resistance, and compliance with safety standards, making it a dependable solution for protecting electronic circuits against overcurrent conditions.
Eaton Bussmann PTSLR12066V260 Low Resistance PTC Fuse Specifications:
- Voltage Rating: 6 V
- Current Rating: 0.75 A to 5.00 A
- Resistance: 0.030 to 0.18 ohms (varies by model)
- Effective March 2020, Operating temperature: -40°C to +85°C (derating above recommended)
- Storage temperature: -10°C to +40°C, Humidity: <75%
- Time-to-trip: 0.08 to 0.08 seconds, Post trip resistance: 0.013 to 0.18 ohms
- Certifications: cURus Recognized, TUV
- Dimensions: 3.00 mm x 1.50 mm x 0.40 mm with recommended pad layout
- Overload endurance: 120% Imax at 50 cycles; 300% Itrip at 6000 cycles
- Soldering Profile: SnPb or lead-free with specified preheat and peak temperature profiles

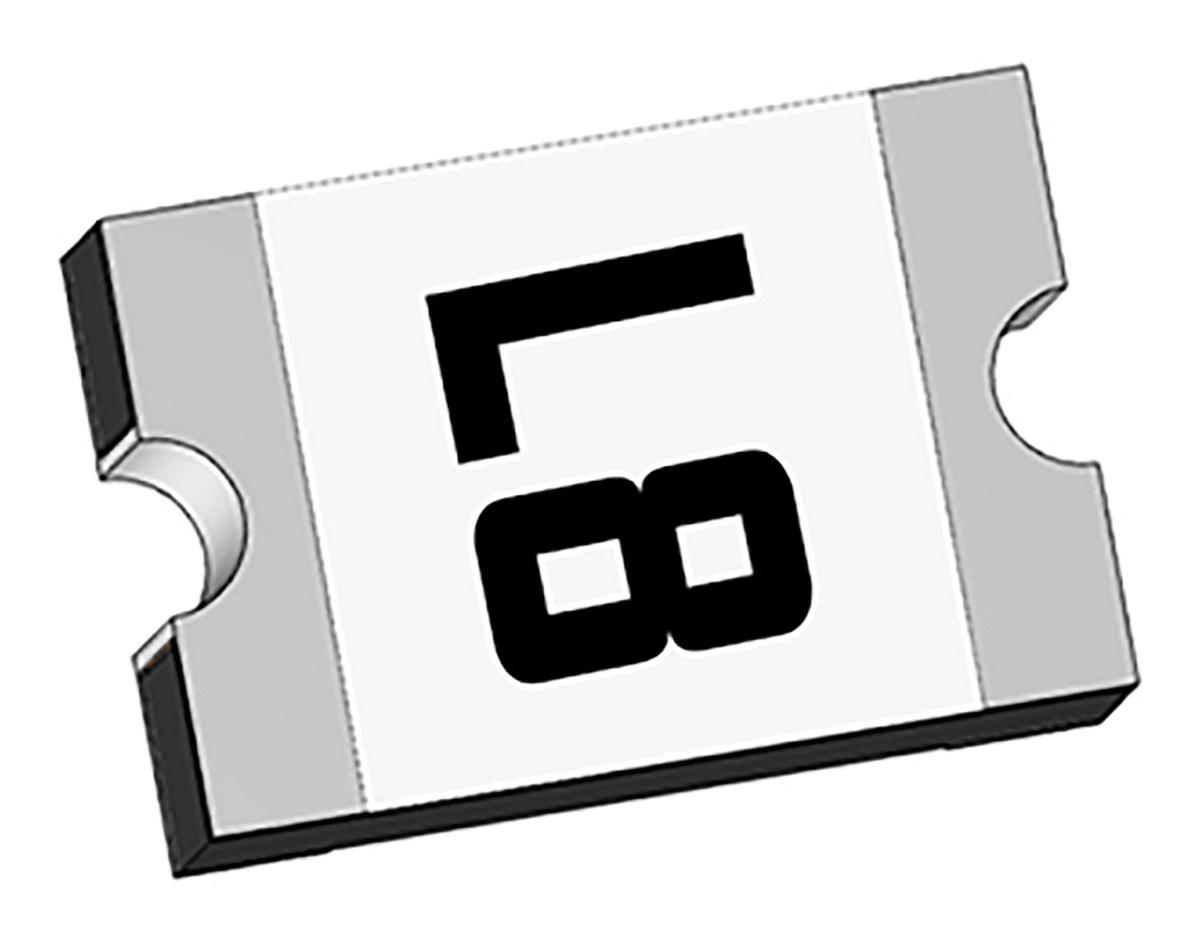

Buy the Eaton Series PTC: PTSLR12066V260
Order the Eaton PTSLR12066V260 low resistance surface mount PTC fuse online today. Ideal for circuit protection in data ports, medical devices, USB protection, and battery systems. It features quick trip times, low resistance, compact 1206 footprint, and meets safety standards like cURus and TUV. With current ratings from 0.75 A to 5.00 A and a maximum voltage of 6 V, this resettable fuse ensures reliable overcurrent protection for sensitive electronic components. Easy to install and perfect for high-reliability applications.
Get Eaton PTSLR12066V260 today—designed for reliable electronic circuit protection and long-lasting performance in compact applications.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12066V260?
You can click on the BUY or RFQ button to purchase PTSLR12066V260 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12066V260?
You can download the PTSLR12066V260 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12066V260?
Eaton Bussmann
